LINOVISION Industrial 8-Port Full Gigabit POE++ Switch with 4 BT 90W PoE Ports, 2 Gigabit SFP Uplinks, POE Budget 120W, POE Watchdog, DIN-Rail POE Switch for PTZ Camera/POE Lighting/ POE Monitor

LINOVISION

LINOVISION Industrial 8-Port Full Gigabit POE++ Switch with 4 BT 90W PoE Ports, 2 Gigabit SFP Uplinks, POE Budget 120W, POE Watchdog, DIN-Rail POE Switch for PTZ Camera/POE Lighting/ POE Monitor

Name: LINOVISION Industrial 8-Port Full Gigabit POE++ Switch with 4 BT 90W PoE Ports, 2 Gigabit SFP Uplinks, POE Budget 120W, POE Watchdog, DIN-Rail POE Switch for PTZ Camera/POE Lighting/ POE Monitor
Brand: LINOVISION
SKU: 32503
Availability: InStock

$119.99

Add to compare

Add to wishlist

Categories: Computers & Accessories, Electronics, Networking Devices, Networking Products, Switches, Switches,Electronics

Description

Price: $119.99
(as of Feb 08, 2026 23:06:15 UTC – Details)

Product description

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. Industrial 8-Port Full Gigabit POE++ Switch Merchant Video

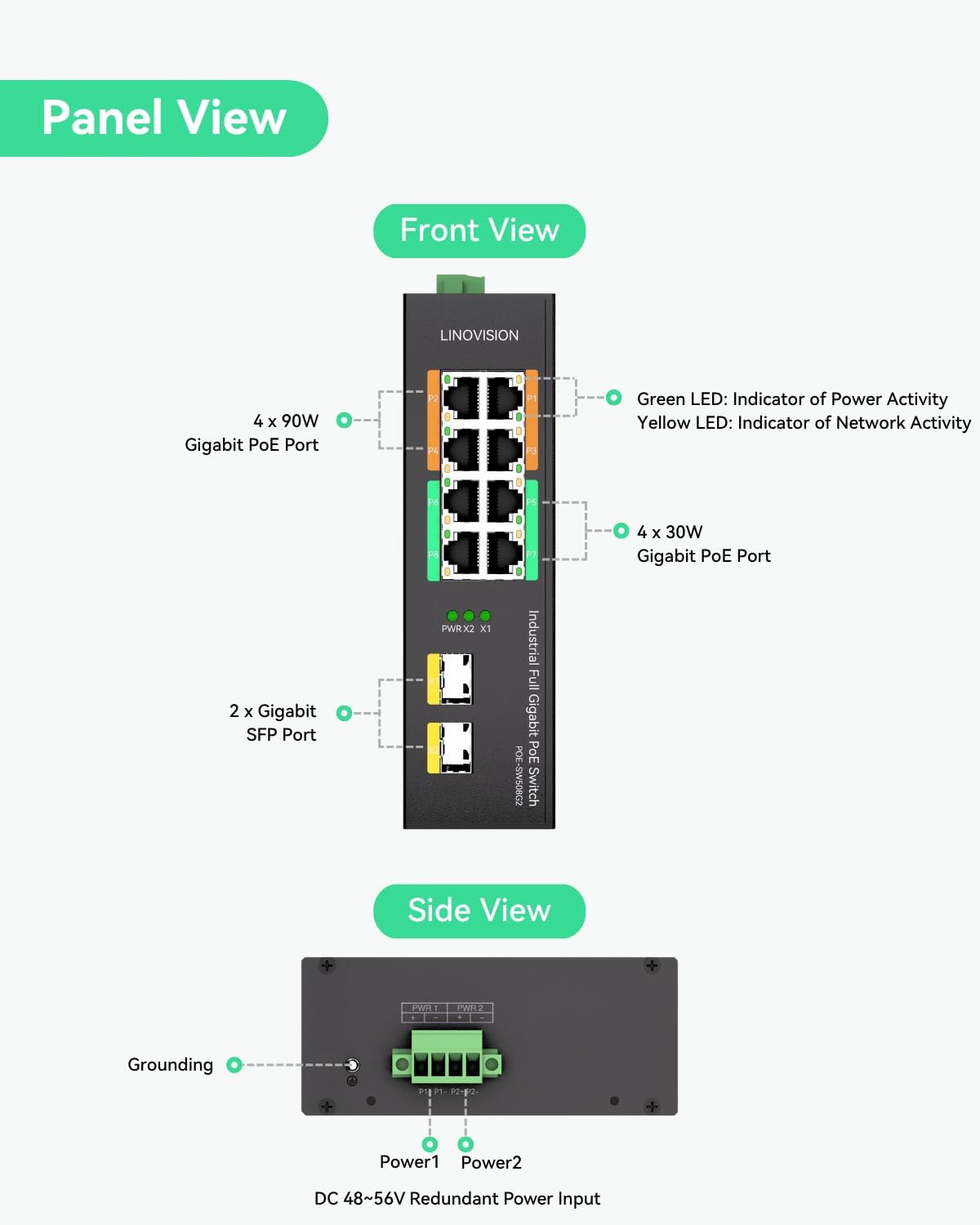

Interface

Outstanding Features Full Gigabit PoE Switch

Providing 8*10/100/1000Base-T Ethernet PoE ports and 2*1000Base-X SFP Ports.

Supports Uplink and SFP Ports SFP Port Supports RJ45 Transceiver

Connect Ethernet via SFP to RJ45 Transceiver (Purchased separately ASIN: B0CKXQ7TPG)

PoE Watchdog

Realtime monitoring PoE load device’s status and will automatically reboot PoE port when the connected device is not active

UL Listed Power Adapter

Default 120W power supply, optional Mean Well 240W Din rail Power Supply (ASIN: B015C9ITSS), the total PoE Budget of PoE Switch can be increased to 240W.

Ultra High BT 90W PoE++ Benefit Connect to PoE Splitter Redundant Power Supply Excellent Compatibility &amp;amp; Safety
1 BT 90W PoE++ Benefit

2 BT 90W PoE++ Benefit

3 Connect to PoE Splitter

4 Redundant Power Supply

5 Compatibility and Safety

Industrial Design Application Package & Installation
1 High PoE Power Budget

2 Industrial Design

3 Application

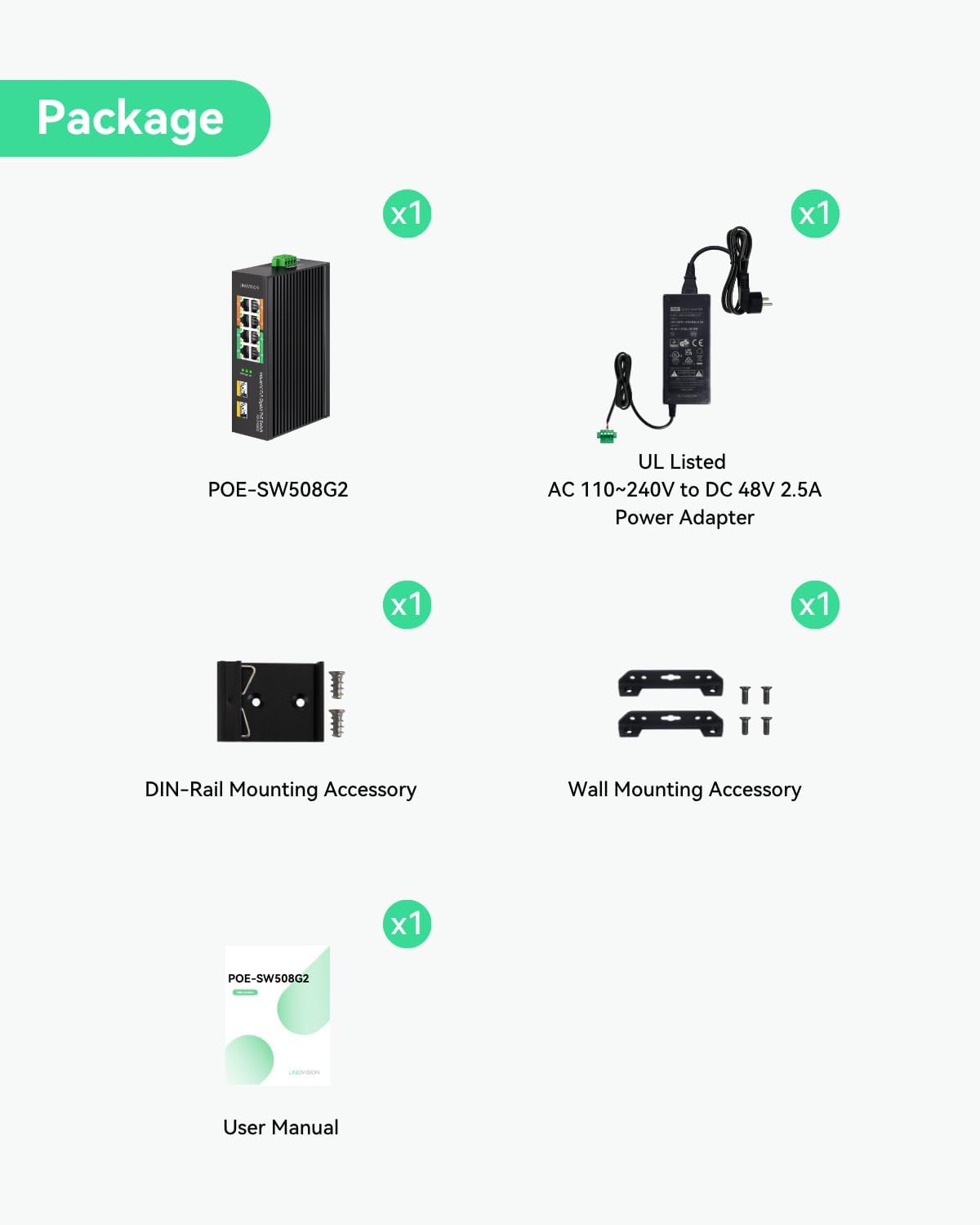

4 Package & Installation

LINOVISION PoE Switch for your choice！

Add to Cart

Customer Reviews

4.5 out of 5 stars 95

4.5 out of 5 stars 64

3.4 out of 5 stars 6

4.7 out of 5 stars 4

—

2.4 out of 5 stars 5

Price

$119.99$119.99

$79.99$79.99

$59.99$59.99

$129.00$129.00

$239.00$239.00

$99.00$99.00

$149.00$149.00

Model

POE-SW508G2

POE-SW308G-4BT

POE-SW304G-4BT

POE-SWR608G

POE-SWR612GM-SOLAR

POE-SWR308G

POE-SWR308G25

Power Input

Dual DC Input: 48~56V

100~240V AC

48~57V DC

Dual DC Input: 8V~57V

100~240V AC

Uplink Ports

2 Gigabit SFP

2 Gigabit RJ45+ 1 Gigabit SFP

1 Gigabit RJ45+ 1 Gigabit SFP

4 Gigabit SFP

2 Gigabit SFP+ 2 Gigabit RJ45

2 Gigabit SFP

1 10G SFP

PoE++ Ports

4 * BT 90W Ports

8 * BT 90W Ports

4 * BT 90W Ports

PoE Ports

8 Gigabit PoE Ports

4 Gigabit PoE Ports

8 Gigabit PoE Ports

8 2.5G PoE Ports

PoE budget

120W

96W

180W

240W@48V, 180W@24V, 70W@12V

120W

130W

Management

Cloud Management

L2+ Remote Cloud Management

Cloud Management

PoE Port Control

Turn On/Off PoE

Installation Method

DIN Rail

Desktop/ Wall Mount

DIN Rail

DIN Rail/Wall Mount

Working Temperature

-40°F~167°F(-40°C~75°C)

-4°F~131°F (-20°C~55°C)

-4°F~140°F(-20°C~60°C)

-40℉ ~167℉(-40℃~75℃)

32°F~104°F(0°C~40°C)

8 PORT FULL GIGABIT POE SWITCH – Providing 8*10/100/1000Base-T Ethernet PoE ports and 2*1000Base-X SFP Ports. (Noted: Each PoE port can be used as an uplink port)

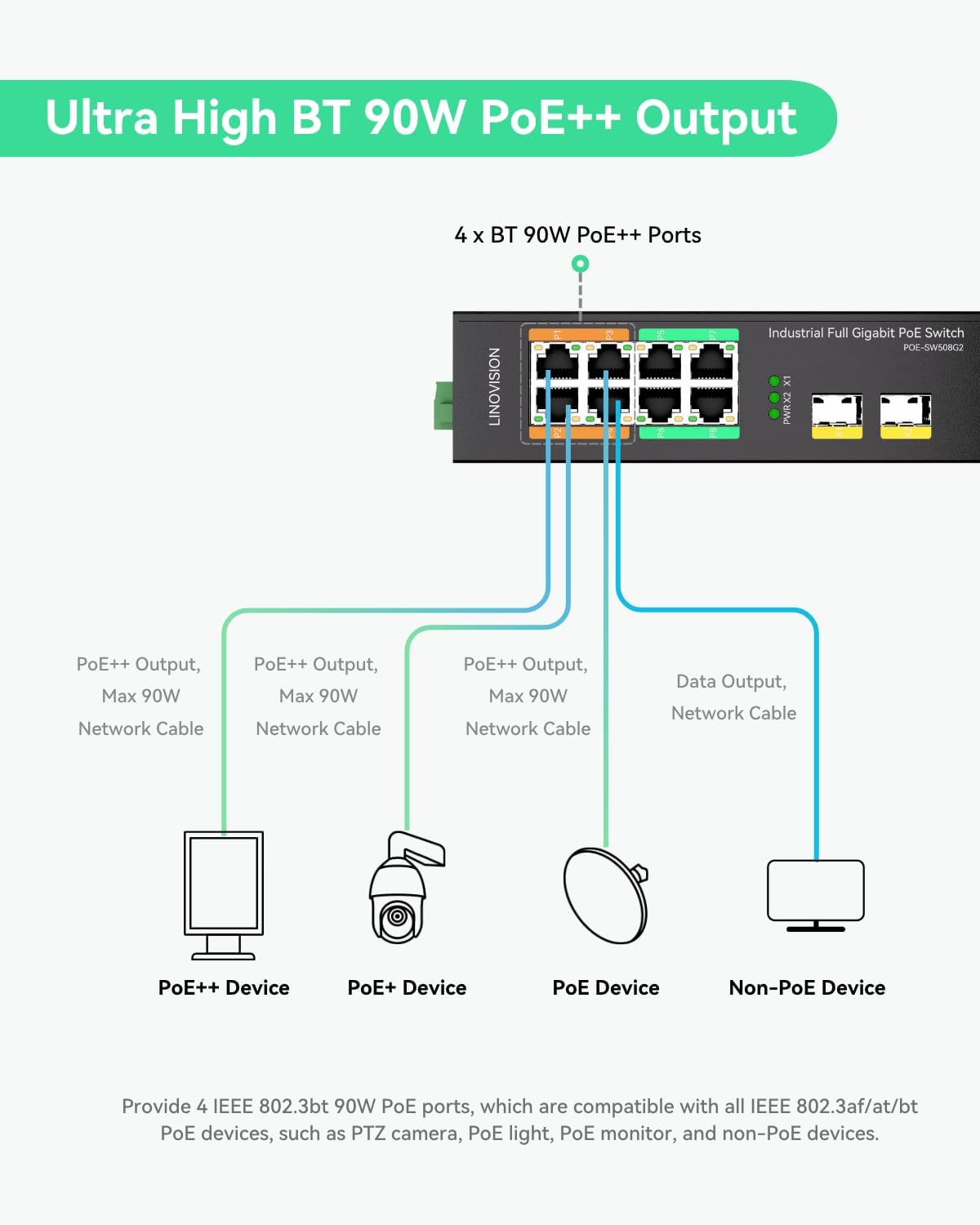

4 BT90W PORTS – The 1~4 ports complying with IEEE802.3af/at/bt POE++ standards, deliver up to 90W power per port, suitable for high-power POE devices, like POE monitor, POE lighting, PTZ camera, etc. The 5~8 ports support the IEEE802.3af/at POE+ standards, deliver up to 30W (PoE+) power per port. The total POE budget is 120W.
POE WATCHDOG – Realtime monitoring POE load device’s status and will automatically reboot POE port when the connected device is not active.

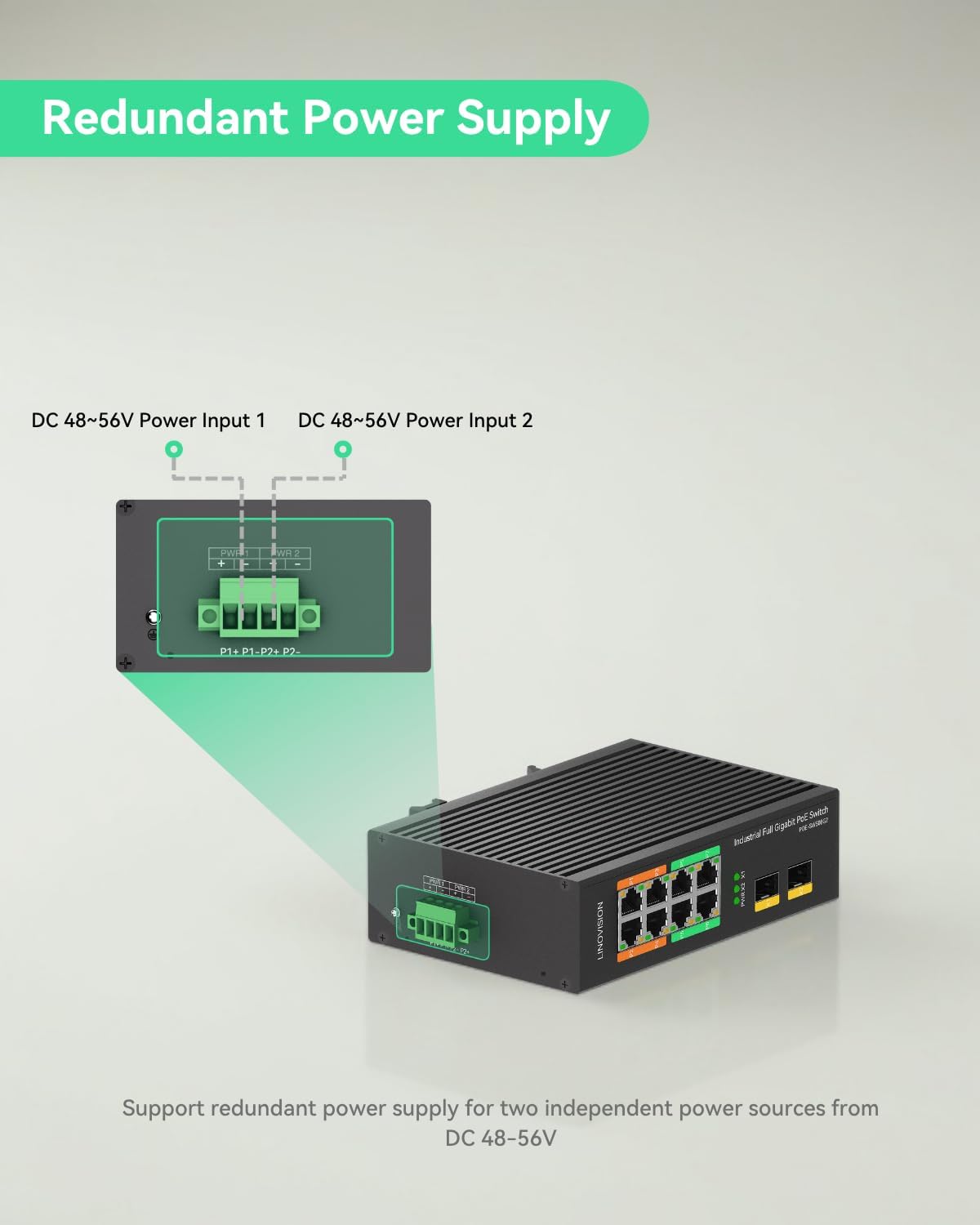

REDUNDANT POWER SUPPLY – Support 2 channel DC48-56V redundant power inputs. Supports 8-pin simultaneous power supply (1/2/4/5 positive, 3/6/7/8 negative) and POE Mode A/B output.

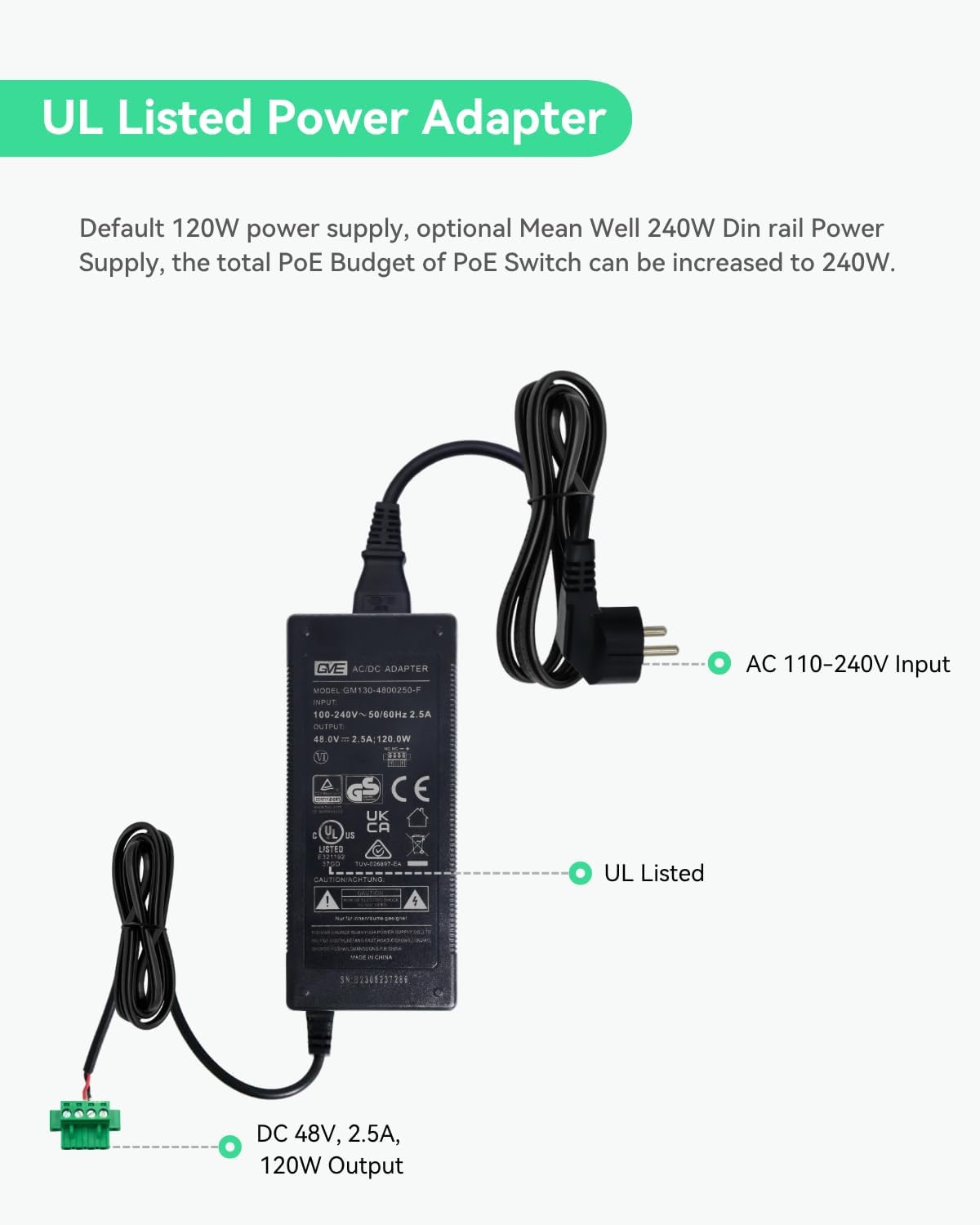

UL LISTED POWER ADAPTER – Default UL-certified 120W power adapter, optional Mean Well 240W Din rail Power Supply (ASIN: B015C9ITSS), the total PoE Budget of PoE Switch can be increased to 240W.
INDUSTRIAL DESIGN – PoE Switch designed with the IP40 metal industrial case, supports Wide working temperature -40 °F to +167 °F (–40 °C to +75 °C ); DIN Rail mounting; 6KV surge protection; Suitable for harsh environments such as factory, refinery and traffic light control box.
WORRY FREE SERVICE – Worry free purchasing with 2-year warranty and US Local Tech Support.

Reviews (13)

13 reviews for LINOVISION Industrial 8-Port Full Gigabit POE++ Switch with 4 BT 90W PoE Ports, 2 Gigabit SFP Uplinks, POE Budget 120W, POE Watchdog, DIN-Rail POE Switch for PTZ Camera/POE Lighting/ POE Monitor

Mario Rios – February 8, 2026

quality and reliability
Solid build. Reliable performance. I powered two big POE++ outdoor cameras without trouble.I like the brackets that it brings to mount sidewise
Rod Russell – February 8, 2026

Nuclear Grade Products
Industrial grade product. I’m a network engineer. I’ve used Linovision products in very demanding environments. It is all rock solids. It delivers advertised bandwidth (speed) while working in extreme environments. I’ve personally tested to >160°F and <5° F.I did have an issue with one AC power cord. One email and a new one was on my doorstep in 40 hours.Use this stuff.
A. Lundwall – February 8, 2026

They seem exceptionally robust for such inexpensive units.
The previous owners of my home ran network cables to every room. They used them for telephones (remember those?), so each line ended up in the attic where there was a punchdown block. When I repurposed those lines for Ethernet, I was sorta stuck putting my switches up in the attic, where the lines ended. But it gets HOT in my attic, since I’m in Texas. So I bought two of these switches because they could handle the heat, and also supply my security cameras with power via POE. I ALSO bought another similar switch from a different manufacturer…it was still an ‘industrial’ switch with the same heat resistance, but without POE and hence a bit less expensive. This was to feed switches in each room where the other ends of the cables were. All three switches are connected via a patch cable.Well, long story short, last week we had a lightning strike on a ham radio antenna about 100 feet from our house. While the antenna itself wasn’t connected (I leave them unconnected when not in use, for this exact reason), the bulk of the strike went to ground through the mast, and caused a surge. That third ‘industrial’ switch couldn’t handle the surge, and not only did it fry that switch, it in turn sent a surge out through all its ethernet ports, and fried all the switches connected to it…that is, all except the Linovision switches! The Linovision switches didn’t skip a beat. So they’ve handled the Texas heat in my attic, and a power surge that destroyed a bunch of other equipment. I ordered this newest one to replace the fried switch, and I’m now back up and running.
A. John Corstvet – February 8, 2026

It Works!
I just received it and set it up. An Amcrest POE camera is plugged into it. A TRENDnet SFP module with a short LC OM1 jumper plugged into a TRENDnet EO converter plugged into the LAN.This is just a test lash up to check comparability. It works fine!The DIN rail mount isn’t much, but non of these little boxes have a decent mount. When installed it will be hanging upside down in a trailer so a solid mount is crucial. Now that the switch is verified working I’ll replace the 4 port TRENDnet switch with this.
Devorne M. – February 8, 2026

I would purchase again
The unit worked very well. Its a strong poe switch. I do wish it came with the din rail for the price. A $2 or 3 dollar part would not have made a difference. Hope the revise and throw that in there.The unit was able to power and operate 2 PTZ cameras + 2 POE cameras with no problem
George – February 8, 2026

great little poe switch
purchased this to install out in my shop. ran some fiber to uplink to my unifi network in my house and works flawless. provides power and network for my cameras and an AP so i have wifi in the shop when im working. i have it mounted in the peak by the air vent next to a vent fan. only had about a month, but it’s working great so far. no complaints other than the latch that doesn’t seem to lock on well.
Airstreaming Harley – February 8, 2026

Good design
Nice design and price have used for 6 months no issues.
Zardoz – February 8, 2026

Works but lacks high speed throughput
It works. However, with this Switch it is difficult for me to connect to any of the attached security cameras in High Resolution mode. I had no issues with my previous switch.
Jeff Tirpak – February 8, 2026

Simple POE ++ switch (only 4 ports). The power input allows for redundant power too.
Chimezie Kingsley – February 8, 2026

Good product
Valter – February 8, 2026

Installato e alimentato, non serve alcuna configurazione, funziona bene al momento.
Smartes Wohnen Peychal e.U. – February 8, 2026

Leistungsstark bei allen Temperaturen, keine Aussetzer oder Leistungsverluste
rodger – February 8, 2026

She works good even through -45 C Canadian winter
