Access Control RFID Reader,Waterproof Access Control System,Access Controler for Electric Magnetic Lock,Proximity Door Entry Keypad,Gate Opener,Zinc Alloy Shell,Wiegand in+Out,Latch Doors Reader
$33.80
Price: $33.80
(as of Feb 13, 2026 21:42:16 UTC – Details)
Product description

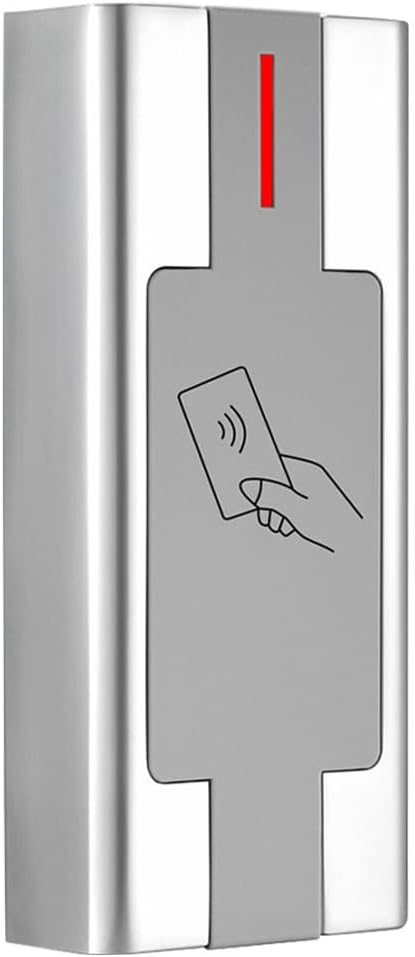

Dual RFID Frequency Outdoor Waterproof Zinc Alloy Metal Access Controler
Dual Frequency 125Khz+13.56Mhz Both Support Outdoor Waterproof Zinc Alloy Metal Access Controler 3000 User Capacity Wiegand 26/34 Input+Output
This device is a waterproof access control/card reader which is suitable for outdoor use. Support 3000 user cards. and guest user settings. Support wiegand input and output, multi-user card authentication, can be set to card reader mode. Support upload and download the data of card user.
Advantages and Features
outdoor ip66 waterproof with admin card
1.Metal housing, Anti-vandal, and Anti-explosion
2.Waterproof, Conforms to IP66
3.Support 125Khz EM & 13.56Mhz M-ifare RFID card
4.Large User Capacity, 3000 Users
5.10 Visitor users
6.Support upload and download the data of card users.
7.Mifare Wiegand 26-44 bits, 56 bits, 58 bits Input/output EM Wiegand 26 bit.
8.Pulse Mode and Toggle Mode
Specifications
Operating Voltage DC10-24V Idle Current ≤45mA Active Current ≤150mA Card Type 125Khz EM and 13.56Mhz MF card Card Frequency 125KHz and 13.56MHz Both Card User 3000 Read Range 3-8cm Operating Temperature -40℃～+60℃ Operating Humidity 10%～99% Dimensions L100xW43xH20mm Unit Weight Metal housing: 220g

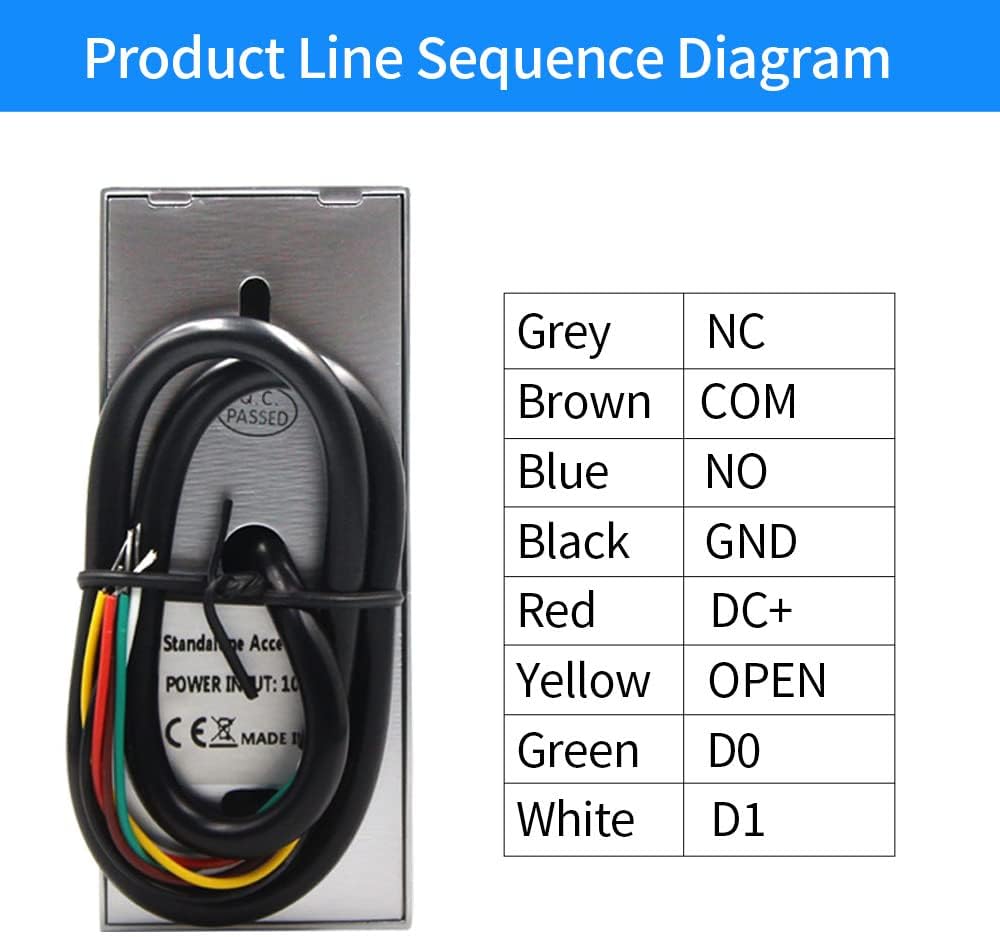

Wires Definition
NC -Grey:Relay NC
COM-Brown:Relay COM
NO-Blue:Relay NO
GND-Black:Negative Pole
DC+ -RED:10-24V DC Power Input
Open-yellow：Exit Button
D0-green：Wiegand Output/Input Data 0
D1-white：Wiegand Output/ input Data 1

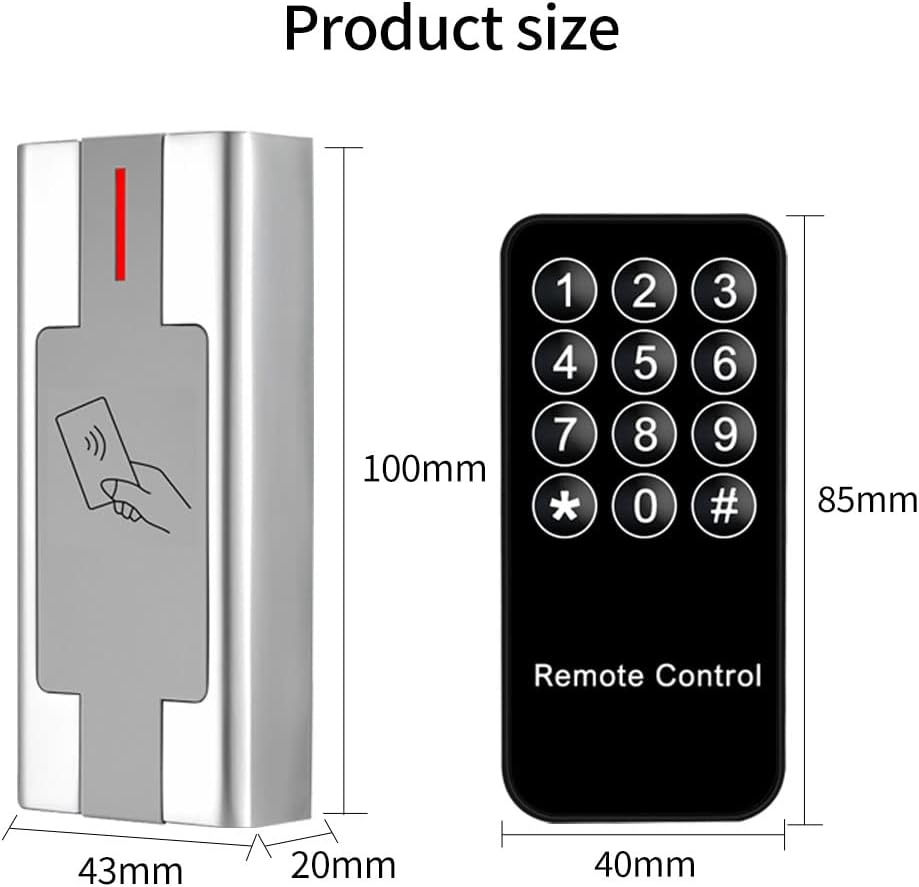

Small Size
43*100*20mm small Zinc Alloy Size Material
with programm keypad

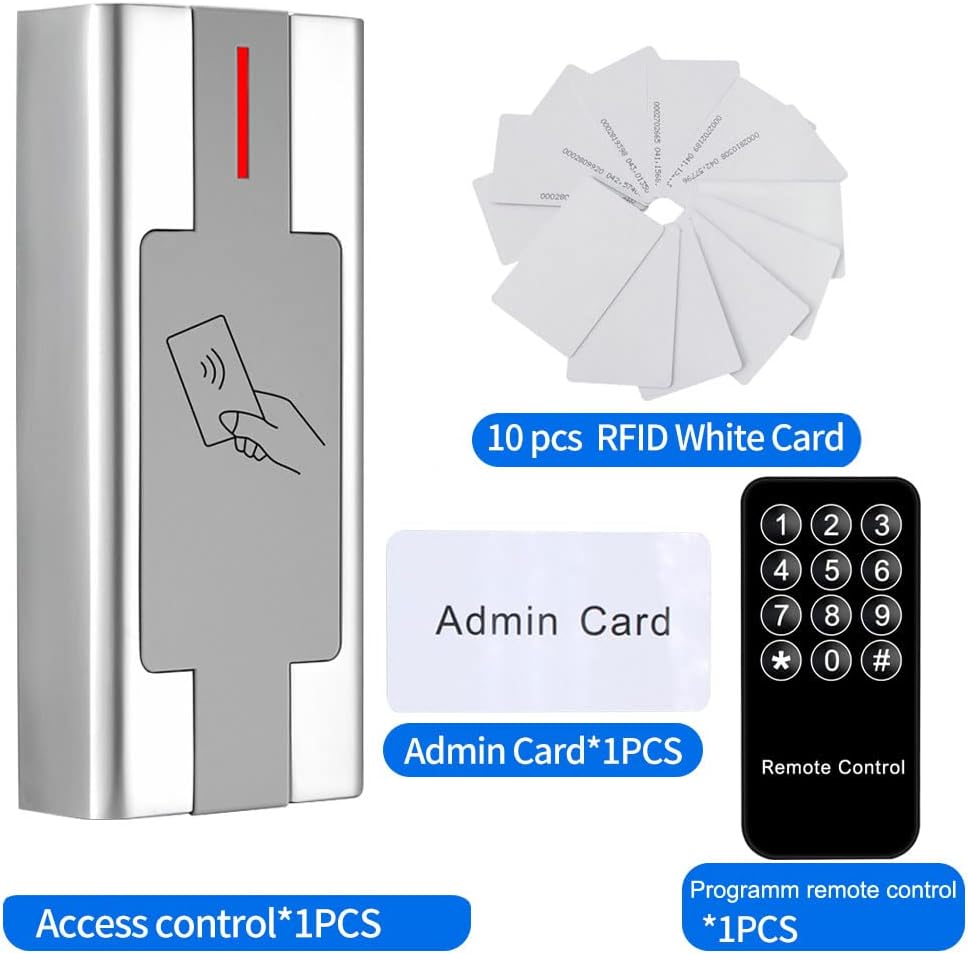

Package List
support Admin card in pakcage
also include 10pcs RFID white card in it
1* access controler
1*programm keypad
1*admin card
5*125Khz white card
5*13.56Mhz white card
1*Screw Driver
1*Diode 1N4004
1*Screws bag
Outdoor IP66 Waterproof
Waterproof, Conforms to IP66
zinc alloy
✔️This Access Controler is Zinc alloy material Shell,Anti-vandal, and Anti-explosion,LED Working Light Display, Support upload and download the data of card user between devices
✔️Support 3000 Ordinary Users Capacity,Open The Door With RFID Card,
✔️Waterproof Conforms to IP66,Rfid Reader work well outdoor.Pulse Mode and Toggle Mode Support
✔️Support Both 125Khz EM and 13.56Mhz M-ifare RFID card,So not need worry buy the wrong rfid card.
✔️Support Wiegand Input and Output,Wiegand Output:Can work Together with Access Control Board Panel Easy by Wiegand.Wiegand Input:have wiegand input function support conect wiegand output rfid reader directly.M-ifare Wiegand Format is 26-44 bits,56 bits,58 bits Input/output, EM Format Wiegand 26 bit.
5 reviews for Access Control RFID Reader,Waterproof Access Control System,Access Controler for Electric Magnetic Lock,Proximity Door Entry Keypad,Gate Opener,Zinc Alloy Shell,Wiegand in+Out,Latch Doors Reader
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
Anpviz 6MP PoE Camera, Turret 6MP UltraHD IP Camera Outdoor with Mic & Speaker, 100FT Smart Color Night Vision, PoE Security Cameras with AI Human Vehicle Detection, MicroSD Slot (U Series)
BAGSMART 15.6 Inch Laptop Case Sleeve Compatible with MacBook Pro 16 Inch,15.6 Inch HP,Dell,Acer Aspire,Asus Notebook, Lightweight Laptop Bag for Women with Shoulder Strap,Pocket,Handle, Pink
Rayon Powell –
Missing items
Order two of these one of the box had no access cards
Vile Lizard –
Highly flexible, robust RFID/NFC access control reader
This reader is very solidly built, super flexible in deployment, and supports both HF and LF RFID/NFC tags.The HF tags are MF Classic (clones), and authentication appears to be by UID only, there are no locked sectors or other security measures found.LF tags are EM4100, with all the (lack of) security inherent in that.The kit includes an “admin card” (LF), which enables the administrator to add or delete other cards. There’s also an IR remote, which enables adding and deleting access cards either by scanning the card, or by selecting them by “user ID” or card UID. The IR remote requires entry of a PIN to access the admin functions, so any random person with a remote can’t easily hack the system.The reader can be configured either to make its own internal go/no-go decision and provide an “unlock” output to control a door latch or alarm system. It can also be configured in Wiegand mode, where it outputs the card IDs using the standard D0/D1 protocol and offers external control of the LED and beeper, so that an external access-control system can manage it.Some minor security nitpicks:Identifying cards by UID alone isn’t terribly secure, and I’d really like to see it use some data in a locked sector to slightly raise the bar. Not much that can be done on LF, that’s just inherently insecure.The “admin” card especially should be an HF card (making it harder to read/sniff at a distance) and definitely ought to employ some security lock features.The usual physical attacks — if someone dismounts the reader from the wall, and it’s used in “standalone” mode, they can short the release wire or the “exit button” wire and open the door. With more involved manipulation they could also perform a factory reset and enroll a new admin card.Using the Wiegand mode with an external access controller mitigates these attacks — there’s still the ESPkey, but that’s a higher bar.If you’re looking for an access control system for a typical home or business application, and you’re not defending against determined and sophisticated attackers, this might fit well.
G Wood –
Working fine as standalone lock controller.
I have this RFID reader controlling an electric lock. All works as expected.Reader-to-RFID proximity for successful reads seems a bit smaller than for some other readers. But as most people physically touch their RFID device to the reader anyway, this doesn’t seem to be a problem.I’ve not tested this reader’s weather resistance. Its electronics all appear well sealed in an elastomeric gel.
John Glenn –
Surprising features in a small package!
This RFID reader acts both as a built in controller if needed (in this case it just needs 12v power supply), or it can act strictly as a reader if you have another controller panel to connect it to. I am impressed with the number of features this offers and definitely have no qualms about recommending it for non-commercial uses. Be aware that it also supports Mifare RFID cards which are much more secure than the old Weigand type. Be aware also that you need an electronic lock in addition to this (the most common would be an electric strike, there are lots available on Amazon). This is just the RFID reader (and controller if you wish). Attached are some photos of various wiring schemes from the leaflet that it came with. I recommend this!
Mary G –
Performs as advertised
System works as expected, no issues to report.
