LINOVISION Mini 2 Port POE Extender Up to 1000ft, Power Over Ethernet Over Cat5/6 Cable, Splitter to 2 POE Devices Like IP Cameras, IP Phone
$32.99
Price: $32.99
(as of Feb 12, 2026 18:48:24 UTC – Details)
From the brand
![a green and blue background with a line of industrial [ unused0 ] and wires.](https://m.media-amazon.com/images/S/aplus-media-library-service-media/b18dbbd3-6590-462a-96df-a46a7c65173f.__CR0,6,1482,633_PT0_SX1464_V1___.png)
Linovision PoE Splitter
Linovision PoE Switch
Linovision PoE over Coax

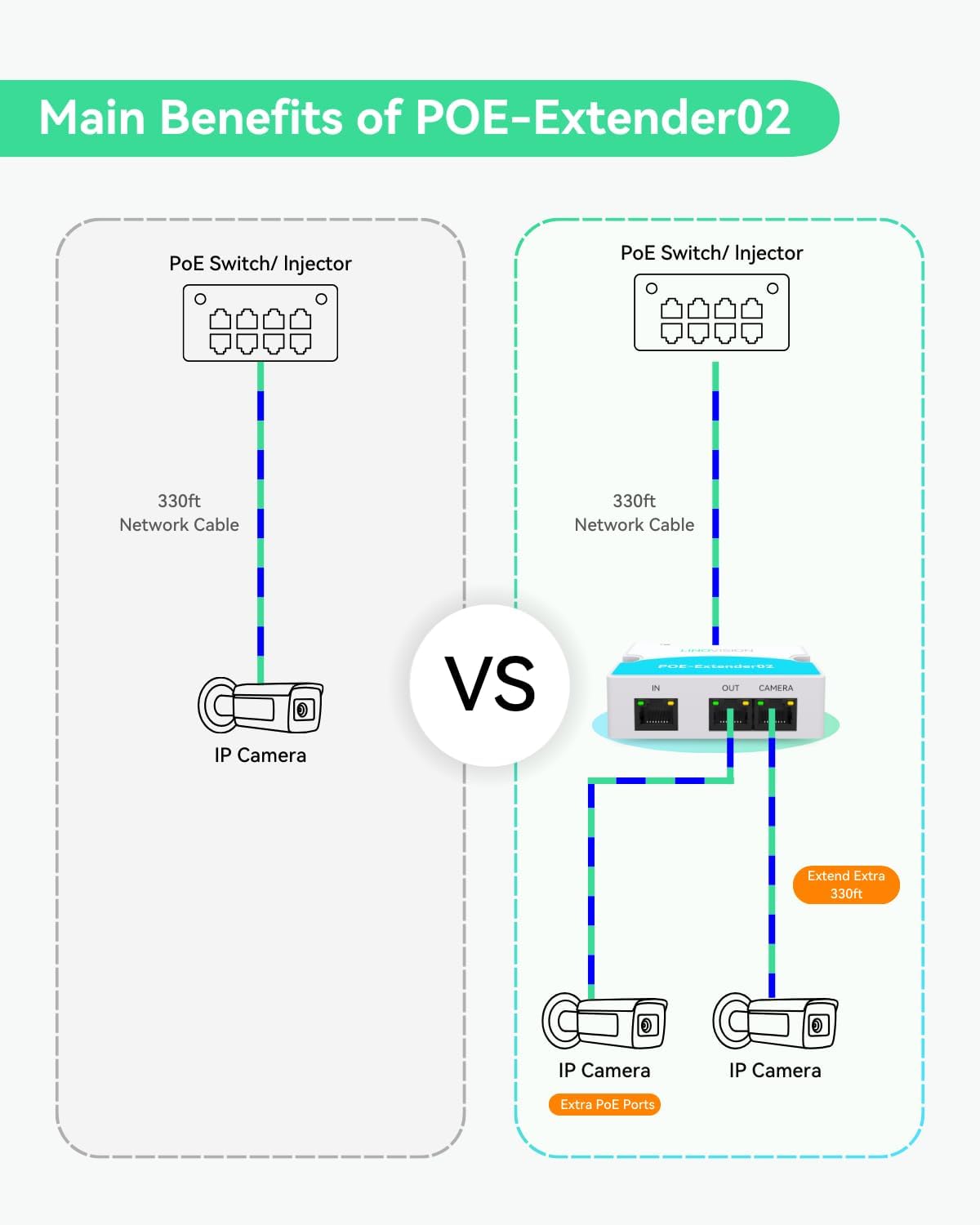

【2-PORT POE SPLITTER】This 2-port POE extender is designed to supply POE power to two POE devices through one Cat5E/6 cable, and no power adapter is required. It is powered by 48V or 53V PoE Switch/POE NVR/PoE Injector/Mid-span. With this POE splitter, users can easily add extra POE device or non-POE device to existing cable without running a new network cable.

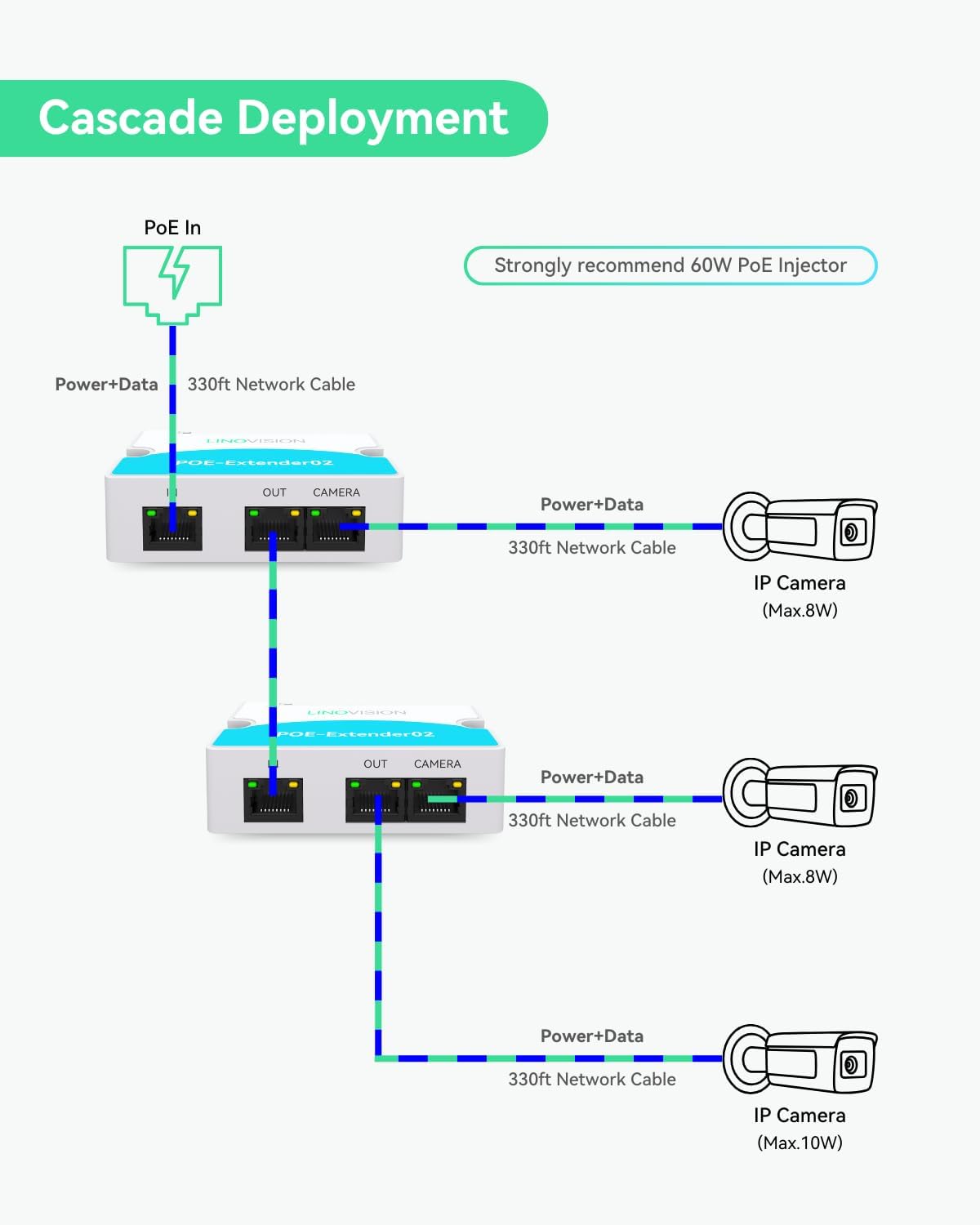

【UP TO 330FT POE + DATA EXTENTION】Extra 330ft POE+Data transmission will be extended with one Linovision POE Extender. And it supports two levels cascade deployment, therefore total 1,000ft POE + Data transmission is provided. (The 2nd POE Extender’s POE Input should be connected to the 1st POE Extender’s Out port, not Camera port)
【COMPLIANT TO IEEE802.3AF/AT STANDARD】This POE Extender works with all standard IEEE802.3af/at POE Switches/POE injectors/POE NVRs. And the POE Outputs supply power to standard POE devices (don’t support 24V POE Devices) , like POE IP camera/IP phone/IP speaker. Noted: The CAMERA Port supports max 8W power consumption and the OUT Port supports max 15W. The max bandwidth is 100Mbps. As the distance increases, the power and the bandwidth will decrease.

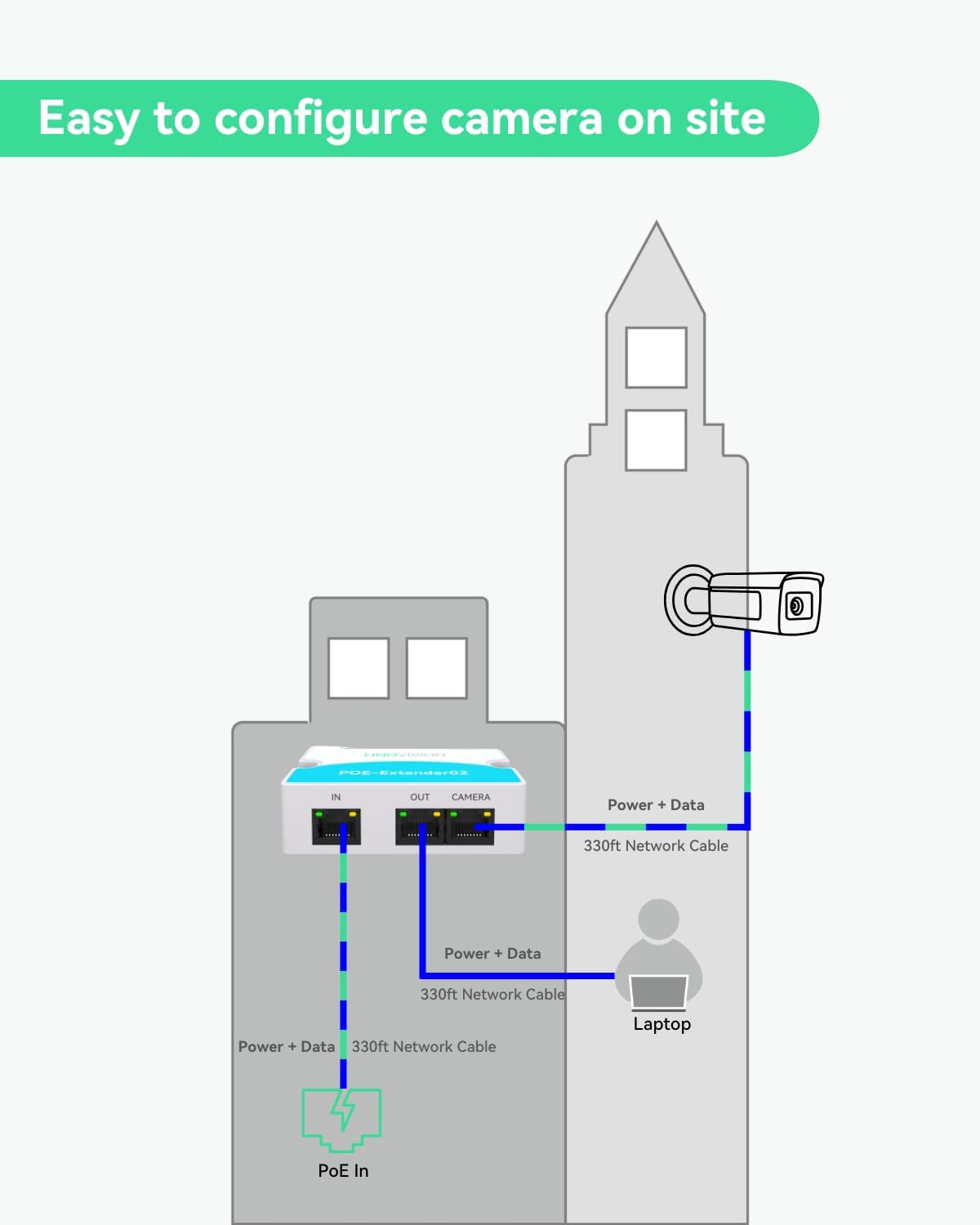

【EASY TO CONFIGURE IP CAMERA ON SITE】By interting this PoE-Extender02 to an existing PoE cable, installers can use laptop or CCTV Tester to easily adjust camera angle and configure IP
【PLUG-N-PLAY INSTALLATION】Plug-n-Play, no configuration or setup is required. With compact dimension ( 3.1”* 2” * 1”), enough to fit many junction boxes or outdoor waterproof enclosures.
【Versions Notes】The product currently has 2 versions, and the 2 versions are shipped randomly. Please rest assured that except for the different panels, the functions of the two versions are the same.
13 reviews for LINOVISION Mini 2 Port POE Extender Up to 1000ft, Power Over Ethernet Over Cat5/6 Cable, Splitter to 2 POE Devices Like IP Cameras, IP Phone
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
ARTIX CL750 Over Ear Headphones Wired with Mic & Volume Control, Audio with 100% Noise Cancelling Computer Wired, Plug in for Laptop, Dj Corded Studio Headphones
Senso Bluetooth Headphones, Best Wireless Sports Earphones w/Mic IPX7 Waterproof HD Stereo Sweatproof Earbuds for Gym Running Workout 8 Hour Battery Noise Cancelling Headsets (Black Blue)
Bought This Item –
It works. Good for systems that don’t have availible LAN connections or POE switch ports are full
My POE switch has only one port available and total power wise its running 50% below max. Tested it with two Hikvision fixed lens cameras that pulled about 5 watts each. Power cycled, about six separate times, the POE LAN port that is connected to the IN on this unit (PoE Extender02), every time the NVR system reconnected both cameras without a problem. Didn’t try to replicate rookie mistakes of running at max spec for this unit as it always is safe and saves time to run under specs, why? cause functionality is always the premium.
Emre Kaya –
Good
Good working
mpat –
It Works!
I needed to add a second POE camera in a location where I already had one. I really didn’t want to run another Ethernet cable, so I purchased this to run both POE cameras off the one cable and it works! I was so happy that the POE could power this switch along with both cameras. Not only that, but there is about 150-200′ of CAT5e cable between the primary POE switch and this switch – and it still works! Couldn’t be happier.
Stinky Thumbs –
Complete garbage
I bought 4 of these to use on POE camera jobs where we’d need an extra camera. I’ve used other POE splitters with no issues. These things are complete garbage. Every single one I’ve installed has failed within 6 months. I’m using these with Hik Vision turrets. According to my POE switch, they draw under 7 watts per camera so I’m within their working range. I have one that is still kinda working… If the power goes out long enough to where the system loses power, the 2 cameras connected to the splitter won’t work unless I unplug everything and plug in 1 camera at a time. I’d have given zero stars if that was an option. These have cost me way more money in service calls than the price of the parts.Save you money. Buy something else. These are absolute crap.
Christopher –
Cheap quality but usually work
Ordered two units, one was DOA. Other one works to power two ip cameras, but after a day both went offline. Had to reset Poe switch. Went offline again a day later.They offered replacement or refund with no hassle so I gave 4 stars for that.
JDL –
Works well
Been running two Dahua 4PM PoE cameras of single CAT5 run for two weeks with no problems. Total power through the device is high relative to the max rating (~7w), but the device itself produces little heat. Booted both cameras simultaneously multiple times and experienced no brownouts or other issues. Total bandwidth to both cameras is ~1Mb with no signs of appreciable packet loss. Seems to be doing the trick.
A. Melvin –
Hit or miss
I’ve bought 3 of these for my home camera network, and today only 1 of them is still working reliably. The units seem to overheat extremely easily and over time, this causes power and connection issues.For the two that no longer work, for a while I would be able to get them functional by unplugging them from the POE switch and reconnecting them, but eventually that no longer worked. Power and tx rates became spotty and the cameras would not power up or connect properly.When the first one went out, I bought the 3rd one thinking that I simply got a bad one. But turns out they all have this issue, as the 2nd one went out and the 3rd one started showing signs of the issues as well. I have since upgraded the critical ones to a more reputable brand and can only use the 3rd one in a diminished, non-data capacity.I would recommend saving the headache and spending the extra $5 or $10 for a better constructed unit.
Mike –
Mount it where you can get to it easily!
This device works as advertised, it will take a single PoE line in and provide two PoE lines out. HOWEVER: make sure you mount this device where you can easily get to it. I have installed two of these units on separate projects, and in the event of power loss, they will not reset properly. Both ports turn on at the same time and neither one will grab an IP address. The only remedy I have found is to unplug one of the cameras, wait about five seconds, then plug it back in. At that point, both cameras will obtain IP addresses again.
u2rec –
PTZカメラとレコーダーをpoe接続で1本の配線で使えています。今の所これといったトラブルもなく安定して使えています。
Jamie –
Works well as a powered switch for non POE devices (like printers) without the need for a separate power cable.I had a spare POE input on my router but only 1 LAN socket near my printers. This allowed me to split that into 2 LAN ports without the need for a power plug and cable for the switch.
MillionName –
Works great with powering a poe camera and continuing the run using poe power only (my switch also pushes poe + if able, haven’t looked into if it’s utilizing that because it works)
Ben Ramsden –
Linovision is a preferred supplier. We purchased this as a simple PoE switch. Cameras worked fine over http but rtsp failed until we adjusted our software “Live555 stream transport settings”. Very happy now. Support from Linovision was super fast and friendly.
ASL –
Works great but needs POE+ source to run two POE cameras. They do get warm to the touch if powering two cameras but nothing to worry about. I’ve installed them both indoor and outdoor and they work great.
