MENGQI-CONTROL 4 Door Access Control System 600lbs Magnetic Lock Access Control Panel 110V Power Supply Box RFID Reader NoTouch Exit Button Enroll USB Reader Card Key Fob Phone APP Remotely Open Lock
$489.99
Price: $489.99
(as of Feb 13, 2026 20:41:41 UTC – Details)
Product description
It’s a heavy package with 4 strong force magnetic locks, please check if it’s suitable for your project and door before purchase, If need special bracket for install or any question, send us message.
Support phone app( Android and iPhone) to open lock, easy to use.
Software support win7/win8/win10/win11 .etc all windows Computer/laptop, for both 32 and 64 bit system. But NOT Support Mac.
We provide video guide+Detail wire diagram,so you can easily setup System.
We only do quality product and service, because this is for security system, Can Check Video Before Purchase.

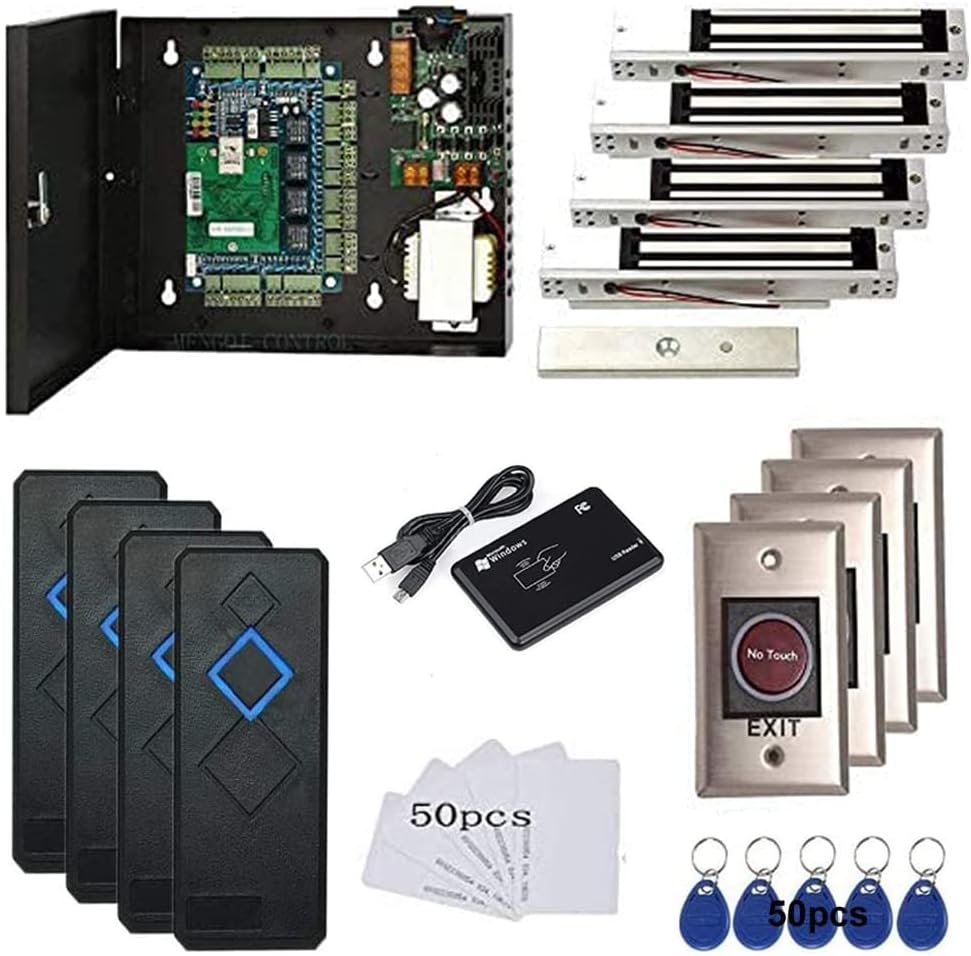

Package include:
1pc Power supply Box( 110-240V input, 5A output, to power the whole system)
1pc 4 door Network Access-Control-Panel-Controller
4pcs Electric Magnetic Lock(280kg/600lbs holding Force)
4pcs RFID Reader(Water Proof)
4pcs No Touch Exit button

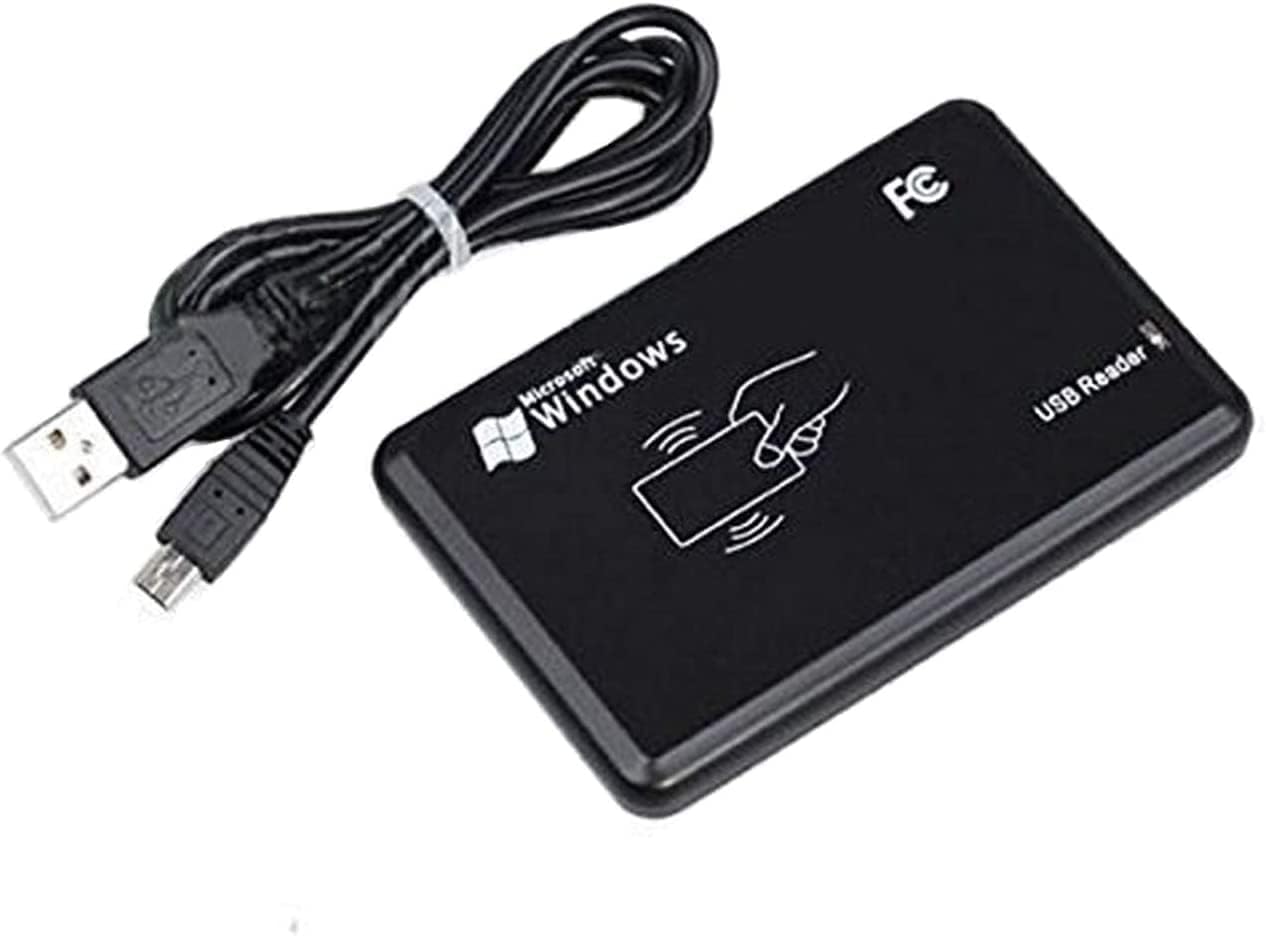

1pc USB Enroll Reader
50pcs RFID Cards
50pcs RFID Key Fobs
1pc English User Manual
4Door Access Control System with 600lbs Mag Lock Access Control Panel 110V Power Supply RFID Reader NoTouch Button USB Reader Phone APP Remotely Open
What the system can do:
Basic funtion: swipe card/key fob open door.Easily add/delete/activate/disable the user open privilege by professional management software.Support phone app to open door locally or remotely.Can be used for high security area, the control board as master unit is put inside room.Can check/download/export the detail history entrance record.Allow access for certain door at certain time for different users.Can keep door auto open during business hour and then auto close at set time.Support holiday security control.Can swipe certain times to keep open and swipe certain times to close door.Can be used for user attendance check also.A lot other features such as anti-pass back, 1st card open, multi-card open .etc…….
Power Supply Box:
Power：60WRated Current：5AInput Voltage：110V-240V, can be used all over the world.Output: DC12V to power on the whole System(11－14V can be fine-tuned).Color of the box：blackSize of the box：279mm * 234mm * 67mmAlso act as the cabinet for the control board.With power cable to insert to electric outlet box.
4 Doors Network Access Control Panel:
Control 4 doors,get in by swipe card/key fob, input PIN code or use card + PIN, and get out door by exit button.Door controlled : 4Support 4 readers.Control of user capacity up to 20,000 user / up to 100,000 history records.Network communication via TCP/IP.Access control management software includes all-in-one-card management system, such as normal shift and multi-shifts time attendance management system,meeting attendance management system,ect.Software support win7/win8/win10/win11 .etc all windows Computer/laptop, for both 32 and 64 bit system. But NOT Support Mac.Support phone app to open door even you are not there.Record never lost in case of power failure.
Electric Magnetic Lock / RFID Reader / No Touch Exit Button:
Electromagnetic Lock: Voltage/Current: 12V/500mALock body size: 9.84L x 1.89W x 0.98H(inch); Plate size: 7.09L x 1.50W x 0.47H(inch)It is a high-performance 600lbs holding force electric magnetic lock which suit for many access control system.NC mode(Locked while supplied with power).Performance testing: 1000000 times aging test.Suitable for :wooden door, metal door, etc.Safety function: built-in voltage spike suppressorAnti-residual magnetism designed.Design without mechanical failure.MOV provides reverse current protection.High strength stainless steel material,anodized aluminum housing.Dual insulative housing increase the holding force.

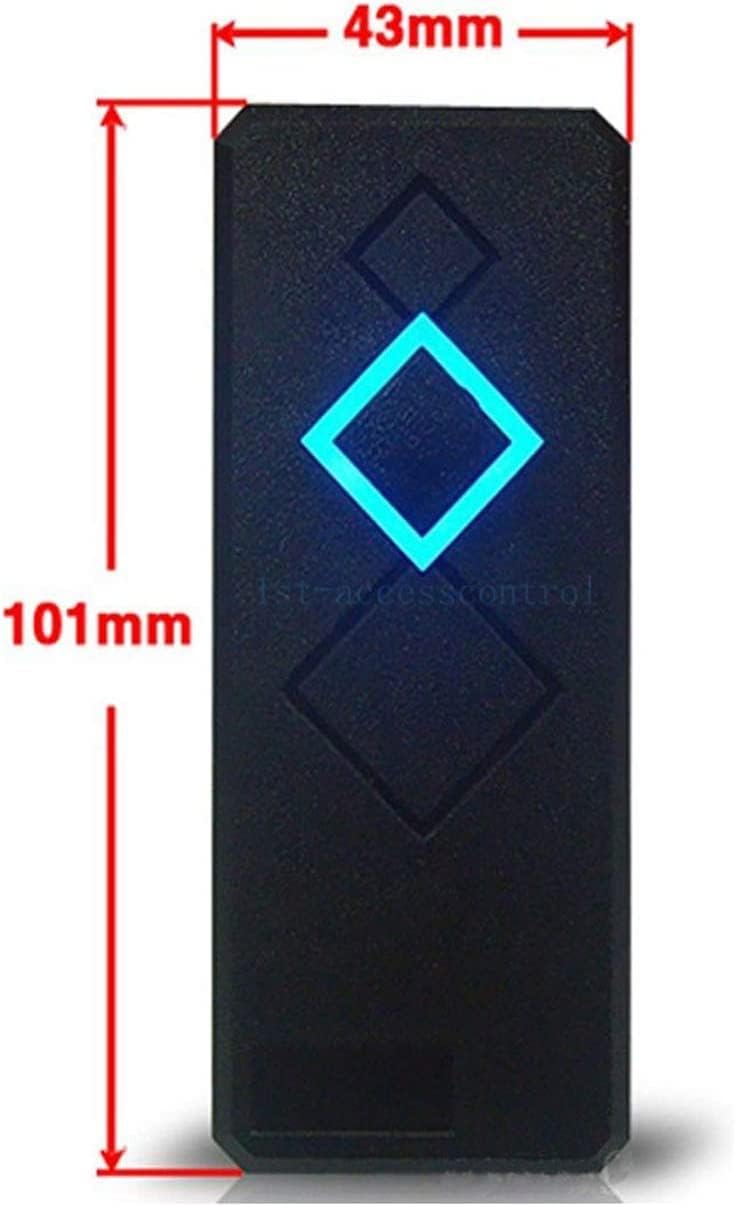

RFID Reader: Size:101x43x16(mm)/3.98×1.69×0.63(inch)Less than 0.2 second response speed, 5-10cm proximity range.Built-in antenna & LED (double color LED) & loud speaker (buzzer).DC 9V-16V working voltage,standard 12V; 70mA working current.Real time data transfer.It’s water-proof.
No Touch Exit Button: No touch / Touch free exit sensor(diffused detection)Contact rating: 3A/AC120V, DC30VInput voltage: DC12VOperation temperature range: -20C-55CLife: 500,000 timesDimension: 114 x 70 x 29(mm)/4.49 x 2.76 x 1.14(inch)Weight: 85g
Control 4 doors, get in the door by swiping card or key fob, get out door by No Touch exit button. Can store/download/check history entry records and generate report by professional management software.
Control of memory up to 20,000 user / up to 100,000 logs. Auto open/close at any pre-set time during any day. Support “who” can enter which door at certain time, authorized access control.
The RFID reader is waterproof, 5-10cm read range. The electric magnetic lock is with 600lbs holding force. Control board is TCP/IP based communication, provide professional designed power cabinet box.
Have smart phone APP( iOS & Android) to open door remotely. Desktop USB reader,read card number into software so that easy programming/register user. Detail video guide and wire diagram make all easily, you can DIY.
Network communication via TCP/IP. Software Supportable Database: Access & SQL Server. Software support win7/win8/win10/win11 .etc all windows Computer/laptop, for both 32 and 64 bit system. But NOT Support Mac.
7 reviews for MENGQI-CONTROL 4 Door Access Control System 600lbs Magnetic Lock Access Control Panel 110V Power Supply Box RFID Reader NoTouch Exit Button Enroll USB Reader Card Key Fob Phone APP Remotely Open Lock
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Brandon W –
Best service and quality products
This whole set-up was easy to program, install, and have operational. The directions were easy to follow, and the components all work great together. I had a little trouble adjusting the pull of the magnet, so I reach out to the supplier at the email address that is listed in the directions. He responded within minutes and helped me through it. Very helpful troubleshooting anything to do with the system, very nice, and super informative. Working with this seller has been a breeze. I wish all sellers were half as helpful as this one. Will ALWAYS return for any components and systems in the future, without a question.
Bertie –
Great product for small business.
This product is super easy to install. The software is dummy proof and the support is great usually response within an hour or less.The only issue i had is that this is not a server application and is not accessible over the network with a web browser,it does however have a remote tool that communicate with the database stored on the main machine its installed on.But they never advertised it as server software so 5 star all round for what they provided.The hardware has a door open/close monitor input aswell that they do not advertise or have on thier wiring diagrams. But it is there and does work.
Ty –
Recommend
Alittle challenging to get the software set up as there are SO many settings but overall I am happy and would buy this system again. Support is quick to respond and help figure things out.
Juan Rodriguez –
Great system.
System works great. Just bought a second one. Great seller communication. And great tech support.
A.Montz –
Great Product Great support Thank You
Phenomial product just finished installing it in a condo’s pool bathroom worked perfectly, For the price you can’t go wrong, you can use cat 5 cat 6 wiring which allows this product to be installed in just about every application. Highly recommend the seller, great communication, fast response honestly can’t say enough good things about this company. Thank you
Lainey –
Worked Amazingly
It was very simple to set up, we did have some issues but their customer support was on point and had video calls with us to get everything corrected.Thanks, Mr. Chen!!!!!
Mark –
Best bang for the Buck
I have 4 of these units from Mengqi and we love all of them, easy install, easy operation. Would a will continue to purchase from them in the future
