Superbat 3G/6G/12G SDI Cable 15ft BNC Cable 75 ohm Belden 1694A Black Support HD-SDI/3G-SDI/6G-SDI/4K Video Camera CCTV Systems, Precision SDI Camera Wire
$27.49
Price: $27.49
(as of Feb 10, 2026 14:53:00 UTC – Details)
Product description
Superbat 3G/6G/12G/HD-SDI Cable BNC to BNC Digital Video Cable ( Belden 1694A cable)
Belden 1694A Low Loss Serial Digital Coaxial Cable is an RG6 coax designed to carry several video signals including analog, 4×3 digital (SD-SDI), high definition (HD-SDI) and even 3gig (1080p/50 or 1080p/60). The center conductor is made from true 75 Ohm 18AWG solid copper.
This cable is 100% sweep tested and is ready to meet today’s requirements of 6 Gbps data transfer.can be used in professional broadcast applications.
Features and Specifications: Overall diameter: 0.274″.
Center conductor: 0.40″ dia. bare copper
Dielectric: 0.180″ dia. foamed PE

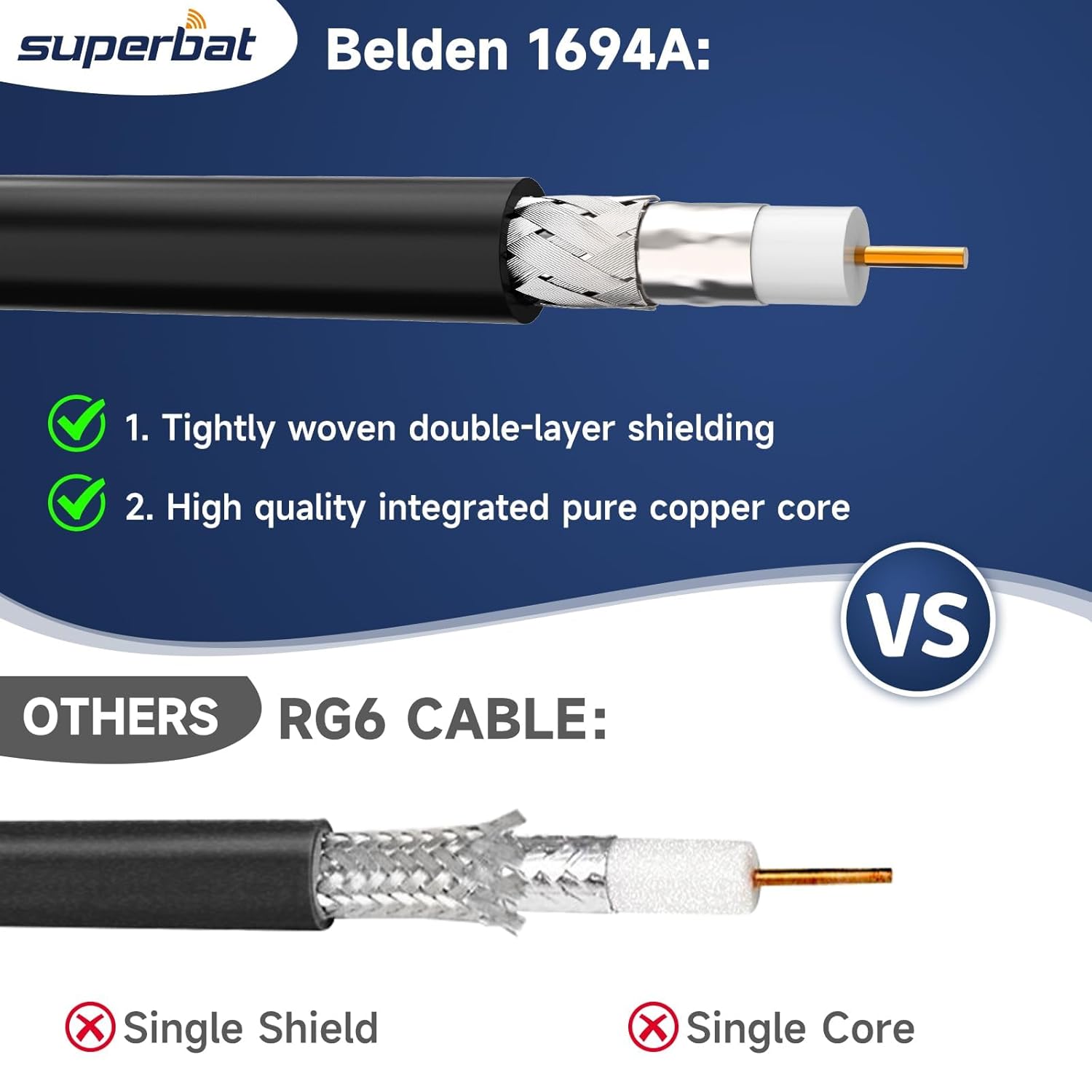

Shield: 100% aluminum foil/polyester tape/aluminum foil and 95% coverage tinned copper -give maximum protection from EMI and RFI, excellent noise rejection
PVC outer jacket – durability and long-term protection.
Velocity of propagation: 82%
Capacitance: 16.2 pF/ft.
Nominal attenuation: 0.240 dB/100 ft. @ 1 MHz
NOTE:
This sdi cable Impedance: 75 ohm for audio and video, so :

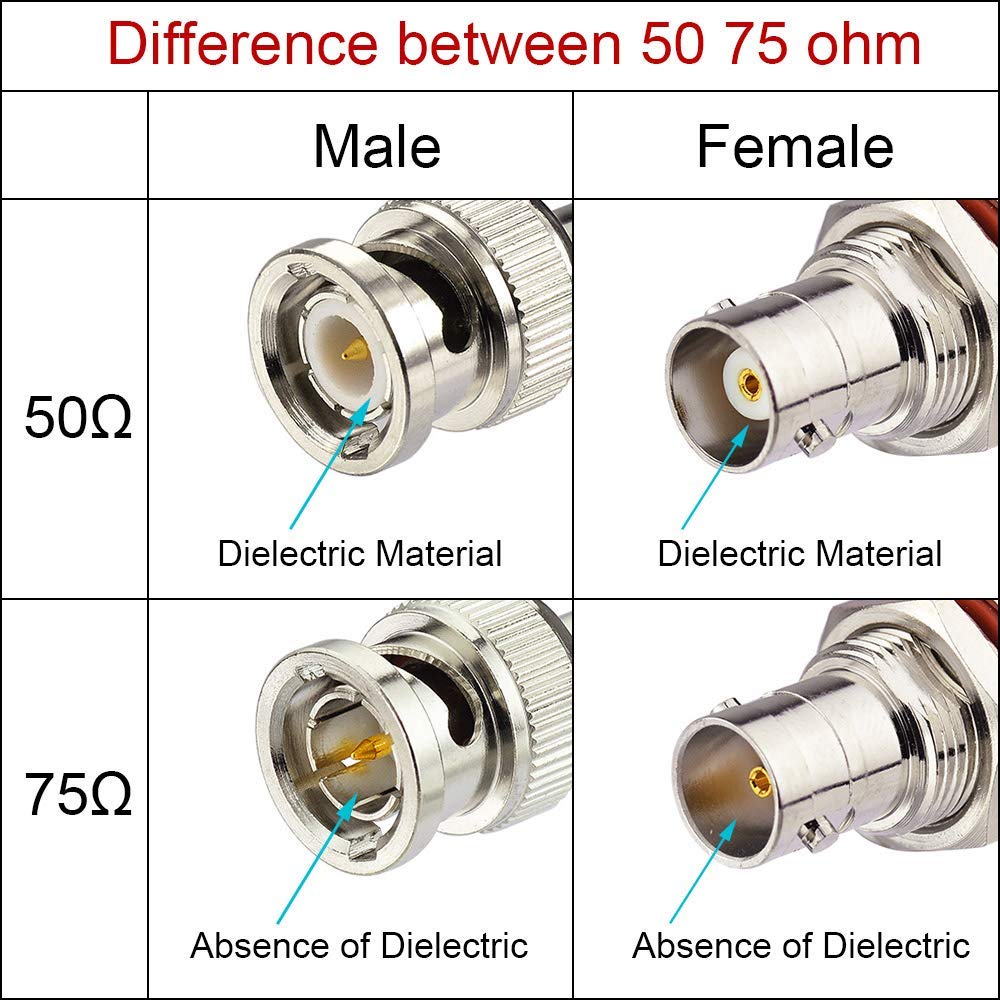

50 Ohm BNC connectors are used with 50 Ohm cables. 75 Ohm BNC connectors are used with 75 Ohm cables.

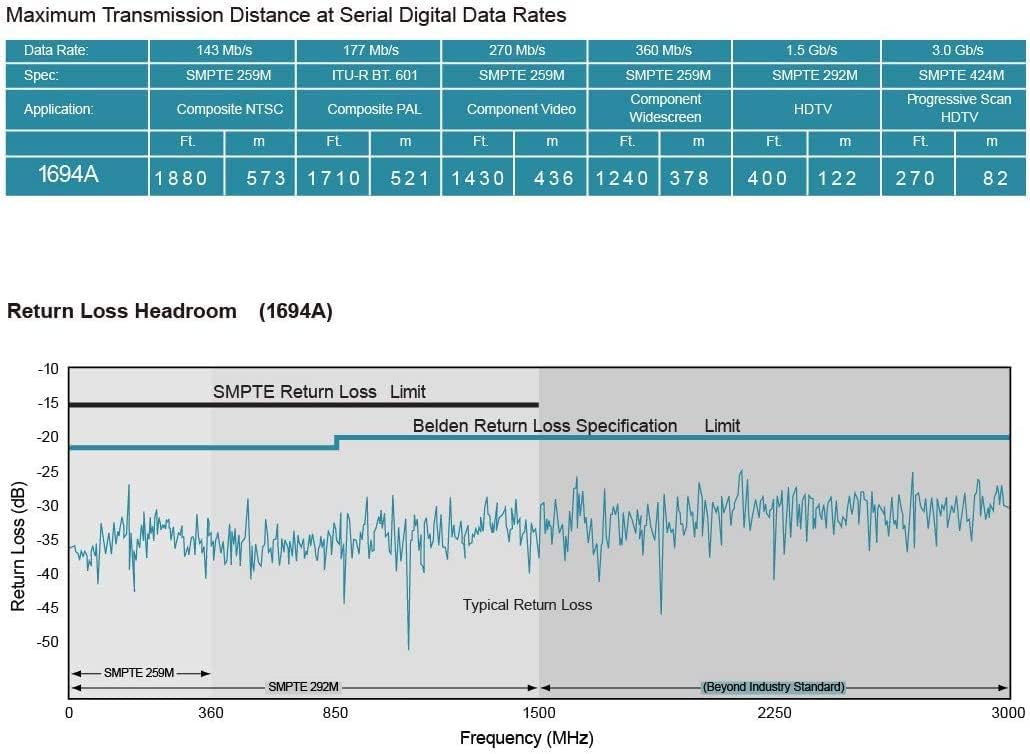

Serial Digital Data Rates Standard Definition SD-SDI (270 Mbps, ST 259) HD standard HD-SDI (1.483 Gbps, ST 292) 3G-SDI (2.97 Gbps, ST 424) 6G-SDI (5.94 Gbps, ST 2081) 12G-SDI (11.88 Gbps, ST 2082)
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.5 out of 5 stars 385
4.8 out of 5 stars 576
4.6 out of 5 stars 57
3.6 out of 5 stars 18
4.1 out of 5 stars 98
4.7 out of 5 stars 23
Price
$6.99$6.99 $23.49$23.49 $11.99$11.99 $13.99$13.99 $14.40$14.40 $18.99$18.99
Cable type
RG179 coax cable Belden 1694A Belden 1855A Belden 1855A 3C-2V A/V Cable Belden 4855A
Support
Supports HD-SDI/3G-SDI/4K/8K，SDI Video Cable Supports HD-SDI/3G-SDI/4K/8K，SDI Video Cable Precision Video Cable SD-SDI/HD-SDI /3G-SDI/6G-SDI Vedio Camera Monitor for Blackmagic BMCC/BMPCC Video Assist 4K Transmissions HyperDeck Kameras SD-SDI/HD-SDI /3G-SDI Cable for SDI Vedio Recorder Camera Monitor Audio Gateway Hub Broadcast Router Frame Sync Converter
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
5.0 out of 5 stars 5
—
4.6 out of 5 stars 4
4.7 out of 5 stars 4
Price
$38.49$38.49 $479.00$479.00 $57.99$57.99
— no data
Cable type
Belden 1694A Black Belden 4694R Belden 1694A Colourful RG179 cable
Application
for SDI Vedio Camera Monitor, SDI Capture Card, SDI Vedio Frame Grabber, SDI Switcher Hub, SDI Frame Synchronizer etc. for SDI Vedio Camera Monitor, SDI Capture Card, SDI Frame Grabber, Switcher Hub, SDI Frame Synchronizer, Surveillance Camera Cables etc. for VCR, camera, CCTV monitor, sdi converter, video splitter, oscilloscopes, surveillance camera cables etc. for Cameras, SDI Video Cable Wireless Microphone System Receiver Extender etc.
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.7 out of 5 stars 391
4.7 out of 5 stars 257
3.8 out of 5 stars 19
4.5 out of 5 stars 107
4.6 out of 5 stars 153
Price
$11.47$11.47 $9.99$9.99 $9.99$9.99 $12.97$12.97 $8.49$8.49
Impedance
75 Ohm 50 Ohm 75 Ohm 75 Ohm 50 Ohm
Type
Coax cable Coax cable Coax splitter bnc coupler bnc coupler

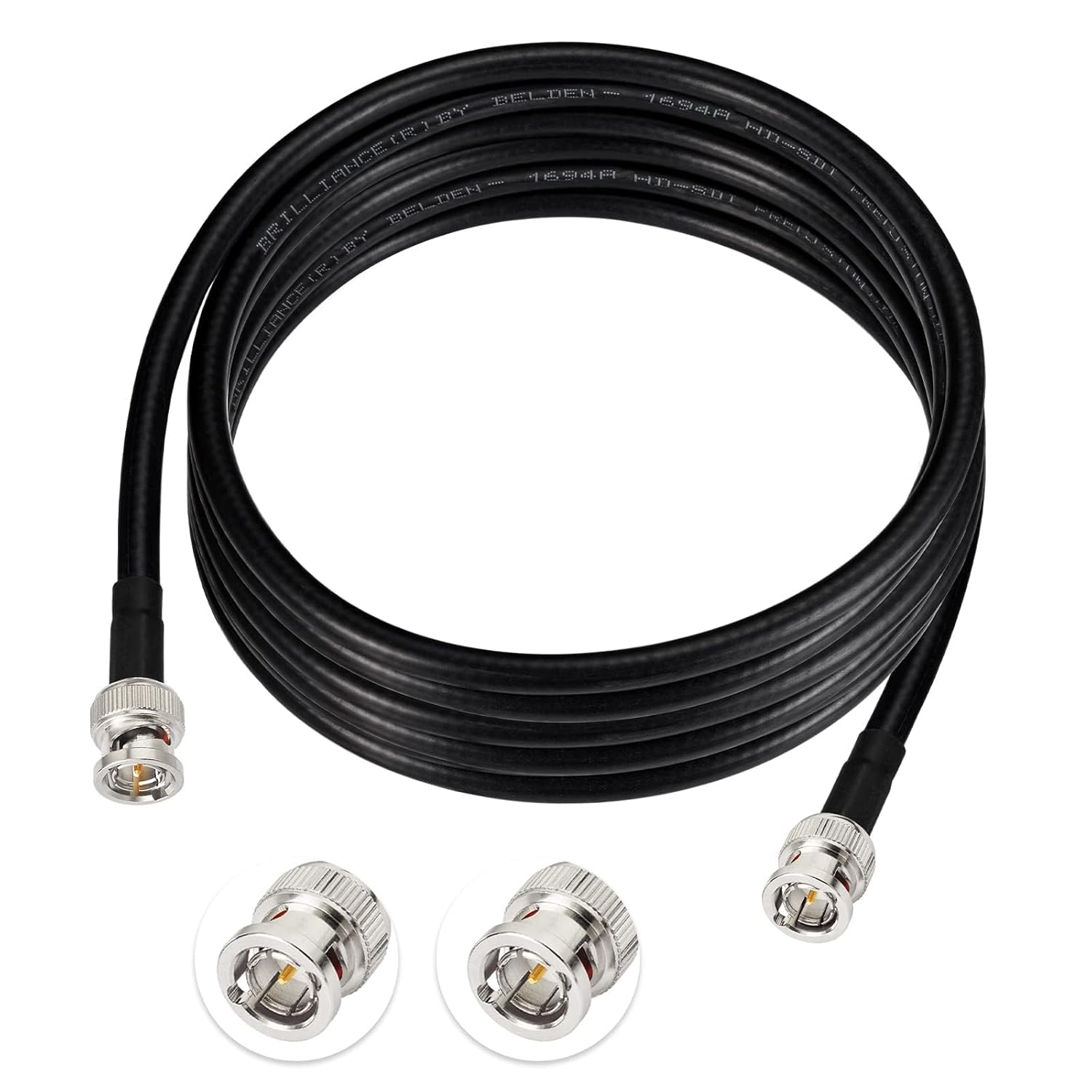

SDI Cable Black HD-SDI/3G/6G/12G SDI Cable 75 Ohm BNC to BNC Digital Video Cable 15ft

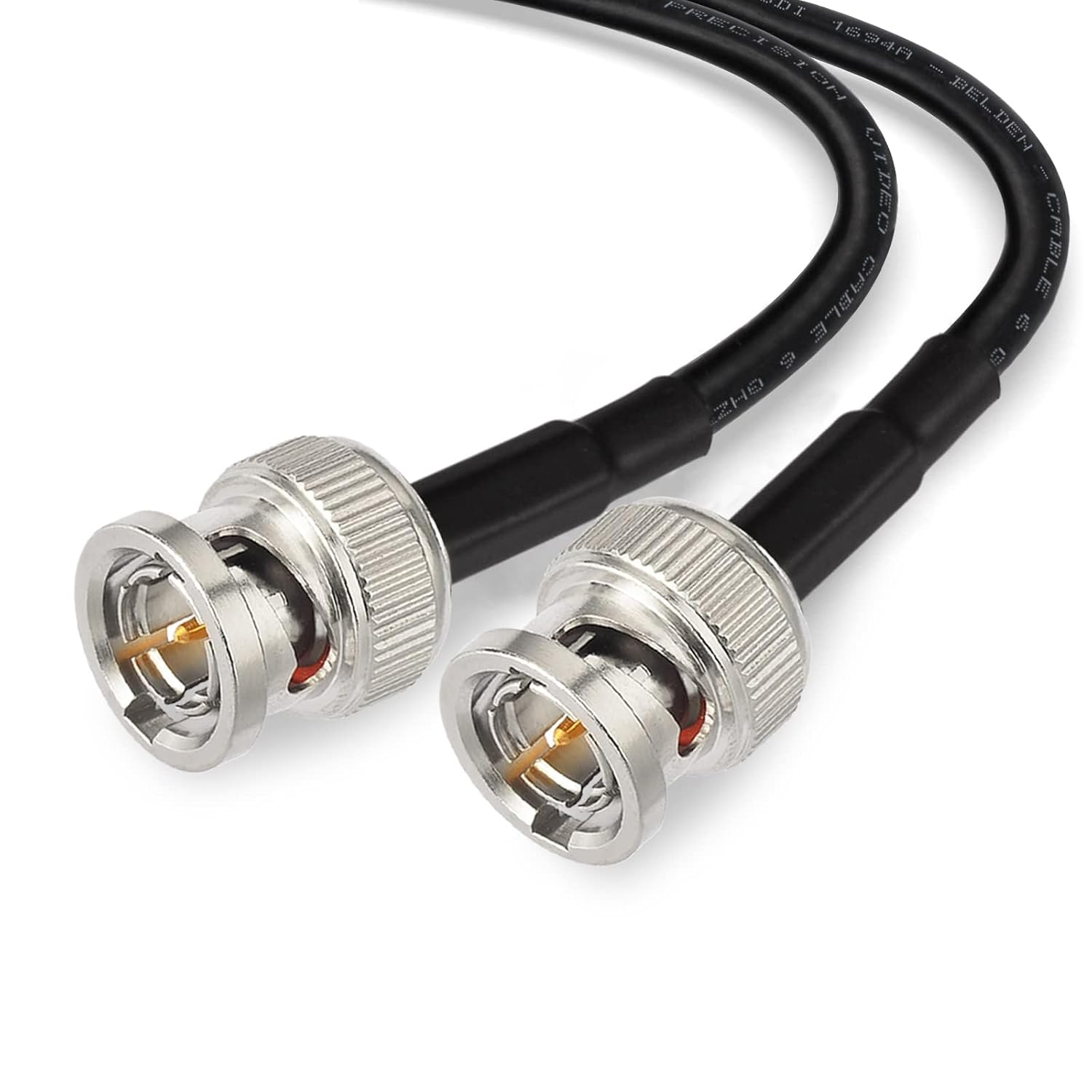

Heavy Duty SDI Connector : 75ohm BNC male to male (plug) | Connector: Gold plated | Standard Definition SD-SDI (270 Mbps, ST 259) HD standard HD-SDI (1.483 Gbps, ST 292)3G-SDI (2.97 Gbps, ST 424) 6G-SDI (5.94 Gbps, ST 2081) 12G-SDI (11.88 Gbps, ST 2082)
BELDEN 1694A PRECISION SERIAL DIGITAL VIDEO COAXIAL CABLE: features exceptionally low attenuation and a 4.5 GHz Bandwidth in an RG6 coax cable. Featuring RG-6/U type, 18 AWG solid . Professional SDI video cable provides fast, stable and secure video signal transmission, suitable for outdoor installations
This long sdi cable Is suitable for HDTV and professional SDI applications: Supports HD-SDI, 3G-SDI, 6G-SDI,component, composite, MADI, WORD CLOCK, SYNC, etc.This shielded coaxial cable is compatible with Blackmagic, AJA, Grass Valley, Evertz, Marshall, Atomos, Postium, AVID Converter .Our HD-SDI cable is great for HD-serial digital video transfer, HDTV upgrades, sdi cable tester, video capture card and SDI video eyc.
Plug and play, this belden sdi cable can be used with 4k video equipment, Panasonic studio model video camera, Ikon external monitor, Atomos Recorder, Sony F65 , Switcher, sdi converters etc.
