Tuya Smart WiFi/Bluetooth DC Motor Controller 10A 7-32V Reversible Switch with Timer, Voice Control for Electric Actuators, Smart Home (Alexa Compatible)
$30.90
Price: $30.90
(as of Feb 10, 2026 14:59:42 UTC – Details)
How to use the forward and reverse controller for remote control and smartphone pairing?
1. Ensure the phone’s location services and Bluetooth are enabled before adding the device.
2. Connect your mobile phone to a 2.4G WiFi network.
3. Power on the device and wait for its network distribution indicator light to flash (twice per second). If it doesn’t, press and hold the reset button for 5-7 seconds.
4. Open the Tuya Smart APP, click “+” to add a device, which will be automatically detected by the system. (5G WiFi is not supported.)
Note: The first-time device addition takes about 15-20 seconds.

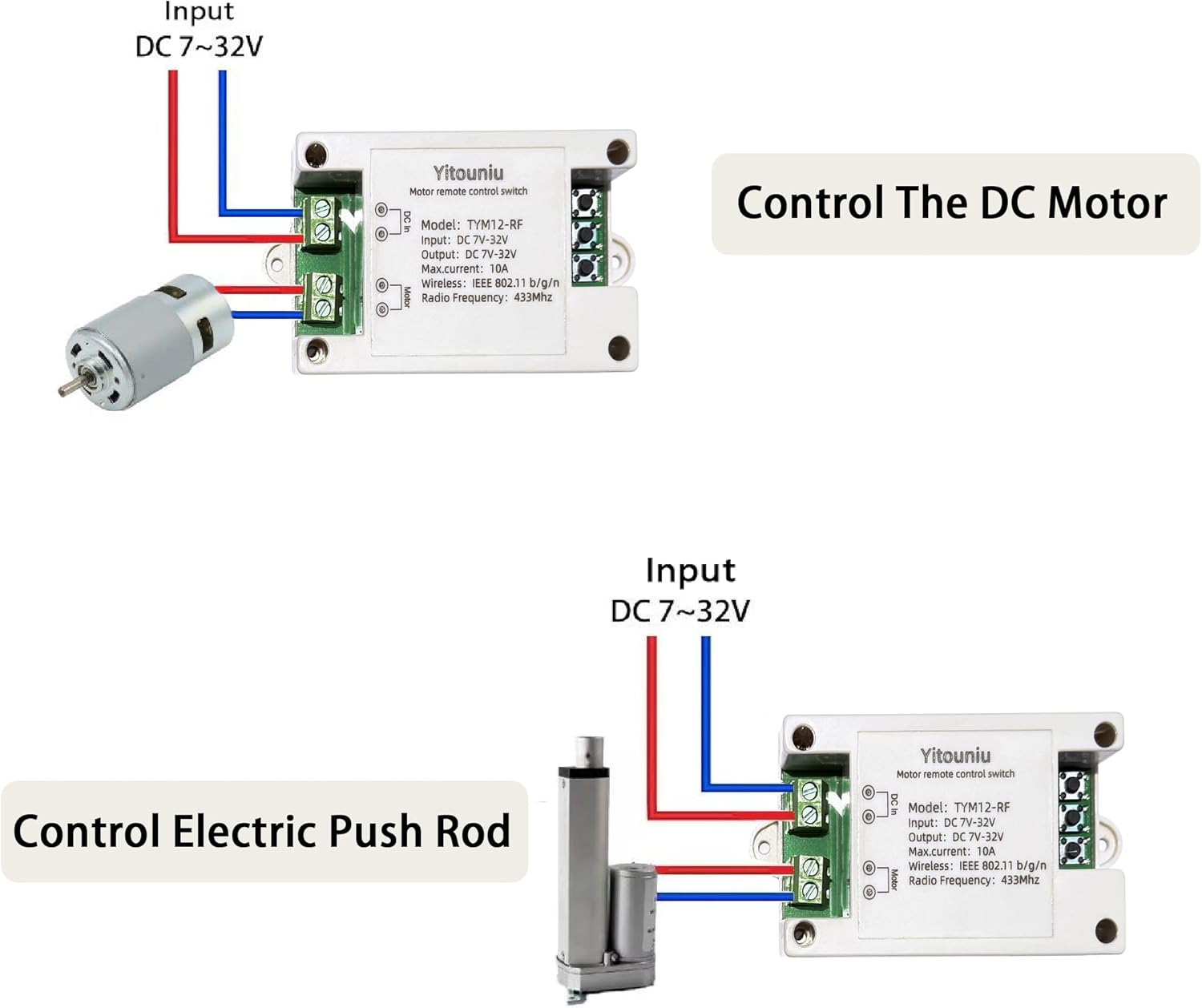

1. Tuya 12V forward/reverse intelligent switch, DC 7-32V. The controller outputs control signals only; an external power supply is needed for driving the linear actuator.
2. Pair with Tuya Smart Life APP.
3. Set interlock in the Tuya APP to control forward and reverse rotation separately.
4. To set running time for both rotations, configure jogging time between 1 and 3600 seconds with a minimum interval of 1 second.
Product parameters:
Mode: Jog (2-3600 seconds), self-locking
Working voltage: DC 7-32V
Maximum load current :10A
Wireless protocol: WiFi+ Bluetooth
WIFI standard: 2.4G b/g/n
Operating temperature: -20~ 70℃
Shell material: ABS
Packaging list:

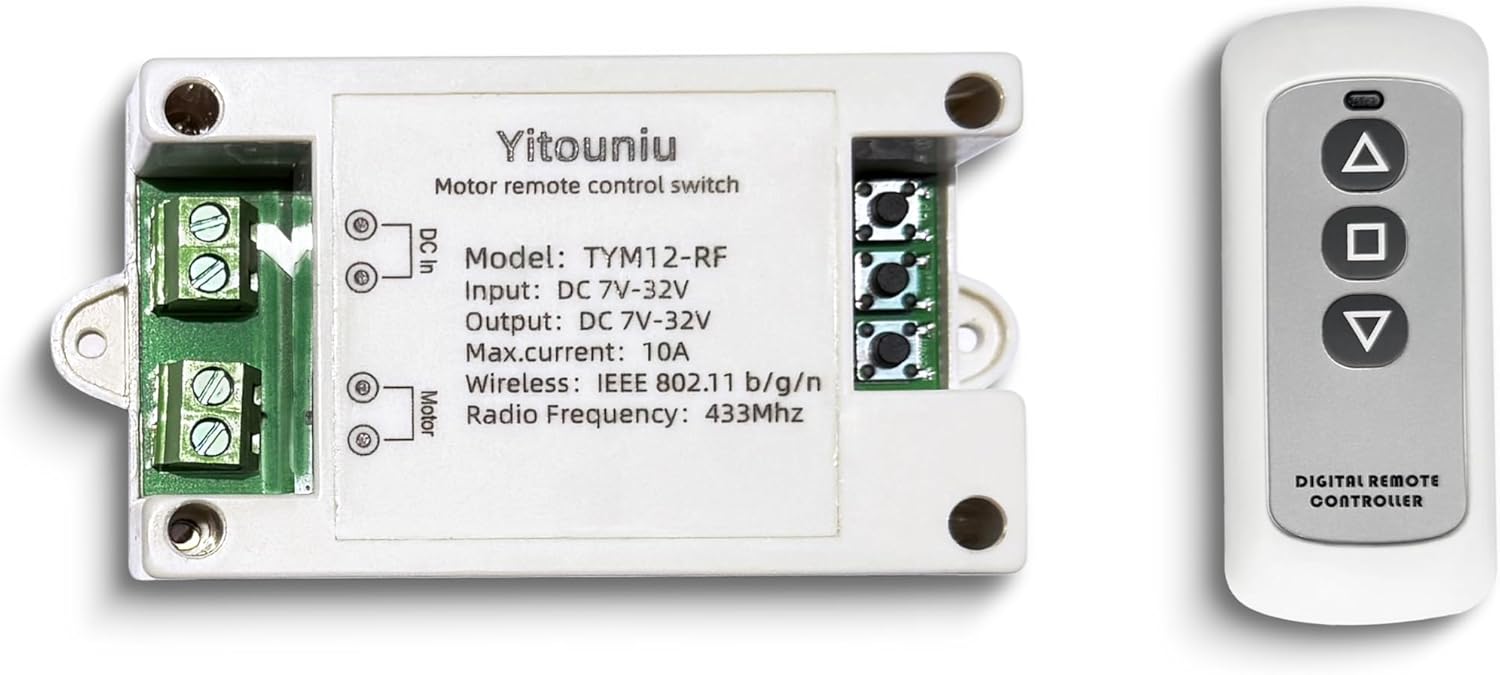

1 X Wifi Smart Switch Controller
1 X 433Mhz three-key Remote Control（Requires 23A, 12V battery, but not included）
1 X Instruction Manual
【Global Remote Control & Multi-User Access】 Control via Tuya APP over 2.4GHz Wi-Fi from anywhere with internet. Share device access, set timers (2-3,600s), and automate smart home/office devices.
【10A High Power & Wide Voltage Compatibility】 Handles 10A max load and DC 7-32V input, compatible with low-voltage motors. 433MHz RF ensures stable signals for precision in, desks, curtains, and medical beds.
【Dual-Mode Flexibility】 Switch between momentary (2s min) and self-locking modes. Customize runtime via APP for mm-level accuracy in industrial or smart furniture applications.
【Smart Ecosystem Integration】 Works with Alexa/Google Assistant for voice control. Bluetooth + Wi-Fi enables seamless IoT integration, syncing with lights, sensors, etc., for automation.
【Durable ABS Design】 ABS fire-resistant housing withstands -20°C~70°C extremes. Compact (82x50x32mm) with heat dissipation and overload protection for safe 10A operation in garages/outdoors.
